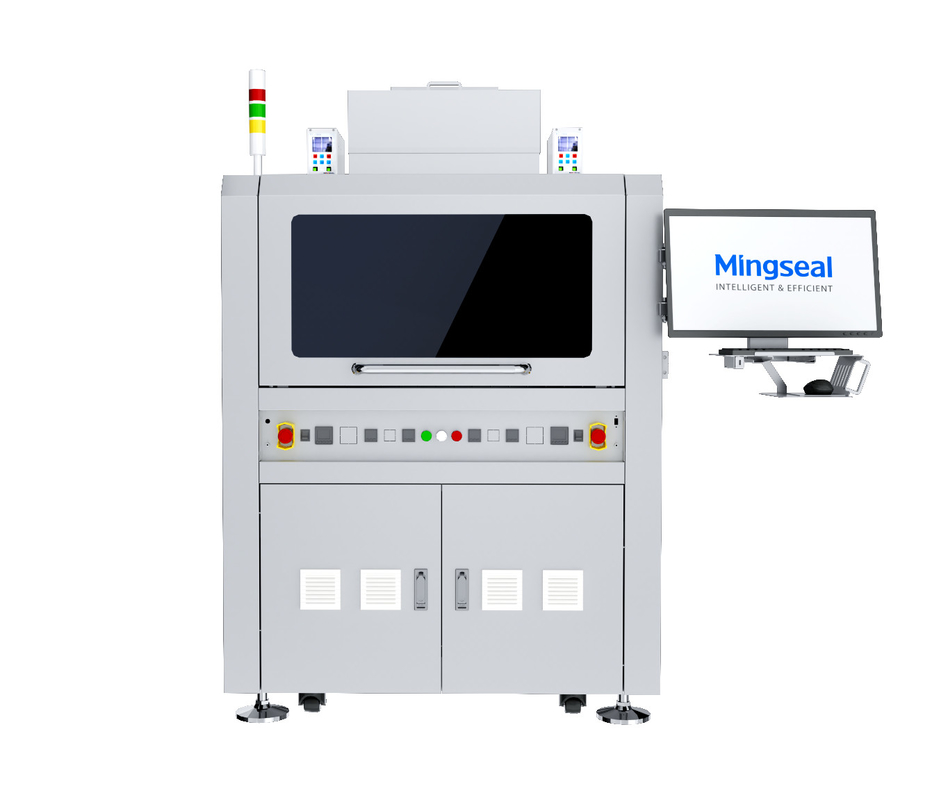

The FS200A online visual dispensing machine is a kind of muti-head,high-speed,high-precision and cost-effective online dispensing equipment which is developed based on the needs of industries such as CCM/VCM modules for consumer precision electronics.The equipment integrates a number of core dispensing technologies and has rich configurations to meet the requirements of high-precision encapsulation,Dam&Fill,bonding,reinforcement and other dispensing processes under complex working conditions.

Features and Advantages

◆ Yield improvement

Glue shape AOl after dispensing operation as well as 3D contour inspection with 3D vision ( optional ) to achievemultiple fool proof.

◆Automation improvement
Optional inline mode to minimize manual intervention.

◆Prevention of whole line downtime
The operation tracks/conveyor tracks are separated,so that shutdown of a single machine does not affect the operation of the whole line.

◆ Stable equipment operation
Good shock absorption with one-piece cast mineral framestructure pioneering in the industry to effectively reduce the impact and vibration caused by the high-speed operation of the equipment and ensure the long-term operation stability ofthe equipment.

Application Fields

CCM

VCM

FPC

MiniLED

SMT

Core Modules

Independent Modules forDouble Valves

The independent modules for double valves can achieve completely independent operation, and are suitable for more dispensing scenarios to improve the dispensing efficiency.

Double-Valve Solder Paste Dispensing Module

Synchronized control of double valves to achieve more efficient operation.The independent modules for double valves can be provided with two sets of
double-valve solder paste dispensing modules respectively to achieve four-valve synchronous dispensing and more efficient operation.

Technical Specifications
