GS600M Online Visual Dispensing Machine MEMS Microphone MEMS Barometer Ultra-Precision Dispensing Controller

MOQ: 1
Price: $28000-$150000
Packaging Details: WOODEN
Delivery Time: 5-60 days
Payment Terms: L/C, T/T, D/A, D/P, MoneyGram, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
MingSeal
Certification:
ISO CE
Model Number:
GS600M
Document:
Product Brochure PDF
Condition:
New
Packaging Type:
Cartons
Voltage:
110V/220V
Automatic Grade:
Automatic
Certification:
CE/ISO
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Free Spare Parts
Highlight:

Smt pcb glue dispenser machine

,

Online Visual pcb glue dispenser machine

,

Online Visual smt machine for pcb assembly

Product Description

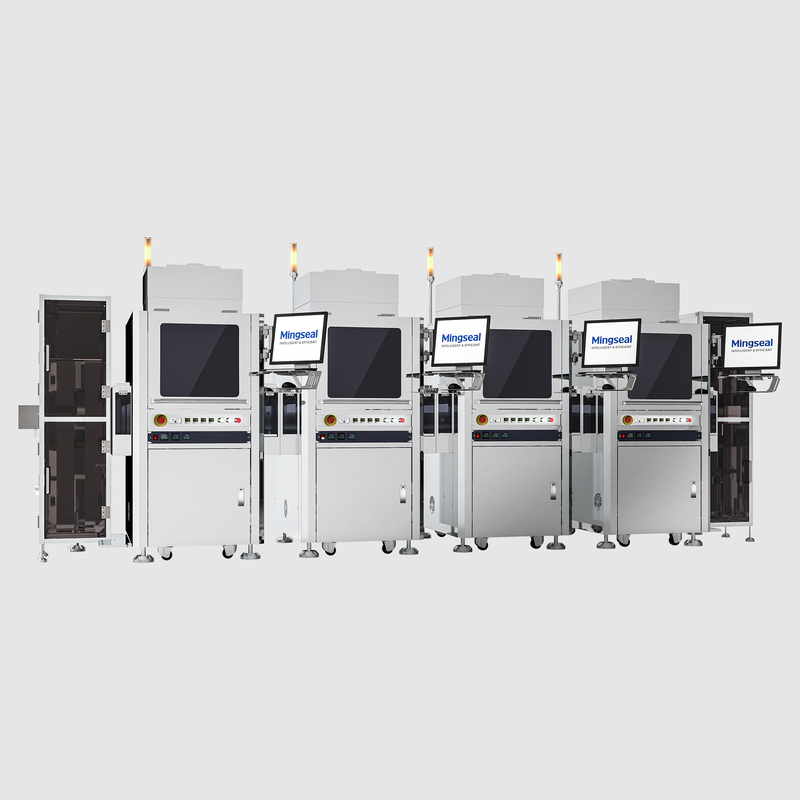

GS600M Online Visual Dispensing Machine

GS600M is a fully- automatic online dispensing platform developed based on the needs of the MEMS industry. It can provide one- stop solutions for on- line ASIC chip encapsulation, precision solder paste dispensing and multiple fool- proof detection, etc. in the MEMS process. High- quality control of the entire production process is realized.
The on-line workstation operation can also be selected.



 Features and Advantages

  • On-line Mode
  • Yield Improvement
  • Work positions are inspected before and after operation, and the fi nal station is professionally inspected to achieve multiple fool proof.
  • Full Automation
  • The on- line mode is used to minimize manual intervention.
  • Prevention of Whole Line Downtime
  • Operation tracks / conveyor tracks are separated, so that shutdown of a single machine does not affect the operation of the whole line.



Application Fields

MEMS Microphone MEMS accelerometer MEMS Barometer



Technical Specifications

Model GS600M
Application Fields Die form packaging of lead frame, substrate, shell
Applicable Process Chip Encapsulation,Solder paste gluing ,Potting ,component reinforcement
Cleanliness Level Cleanliness of working area Class 100 (Class 1000 workshop) Class 10 (Class 100 workshop)

Transmission

System

 Transmission mechanisms

X/Y:Linear motor

Z:Servo motor&Screw module
Repeatability (3sigma) X/Y: ±0.010mm Z: ±0.015mm
Positioning accuracy (3sigma) X/Y: ±0.015mm Z: ±0.025mm
Max. movement speed X/Y :1000mm/s Z: 500mm/s
Max. accelerated velocity X/Y: 1g Z: 0.5g
Grating resolution 1 μ m
Z axis height calibration&compensation Method Laser sensor (Laser sensor)
Laser sensor accuracy ±0.01mm

Dispensing

Capability

 Dispensing method Piezo-pump (Mingseal self-developed)
Glue control accuracy

±3%/1mg

(as per actual adhesive specific gravity)
Min. single dot glue weight

0.001mg/dot

(as per actual adhesive specific gravity)
Max. fluid viscosity 200000cps
Max. jetting frequency 1000Hz
Runner/nozzle heating temperature Room temperature~200℃
Runner/nozzle heating temp. deviation ±2℃

Facilities

 Footprint W× D × H 2050× 1535×2085mm
Weight 1.5t
Power supply

200~240VAC,47~63HZ

(Single-phase voltage adaptation power supply)
Electric current 35A
Power 7KW
Inhale 5.0-7.0 kg/cm2
