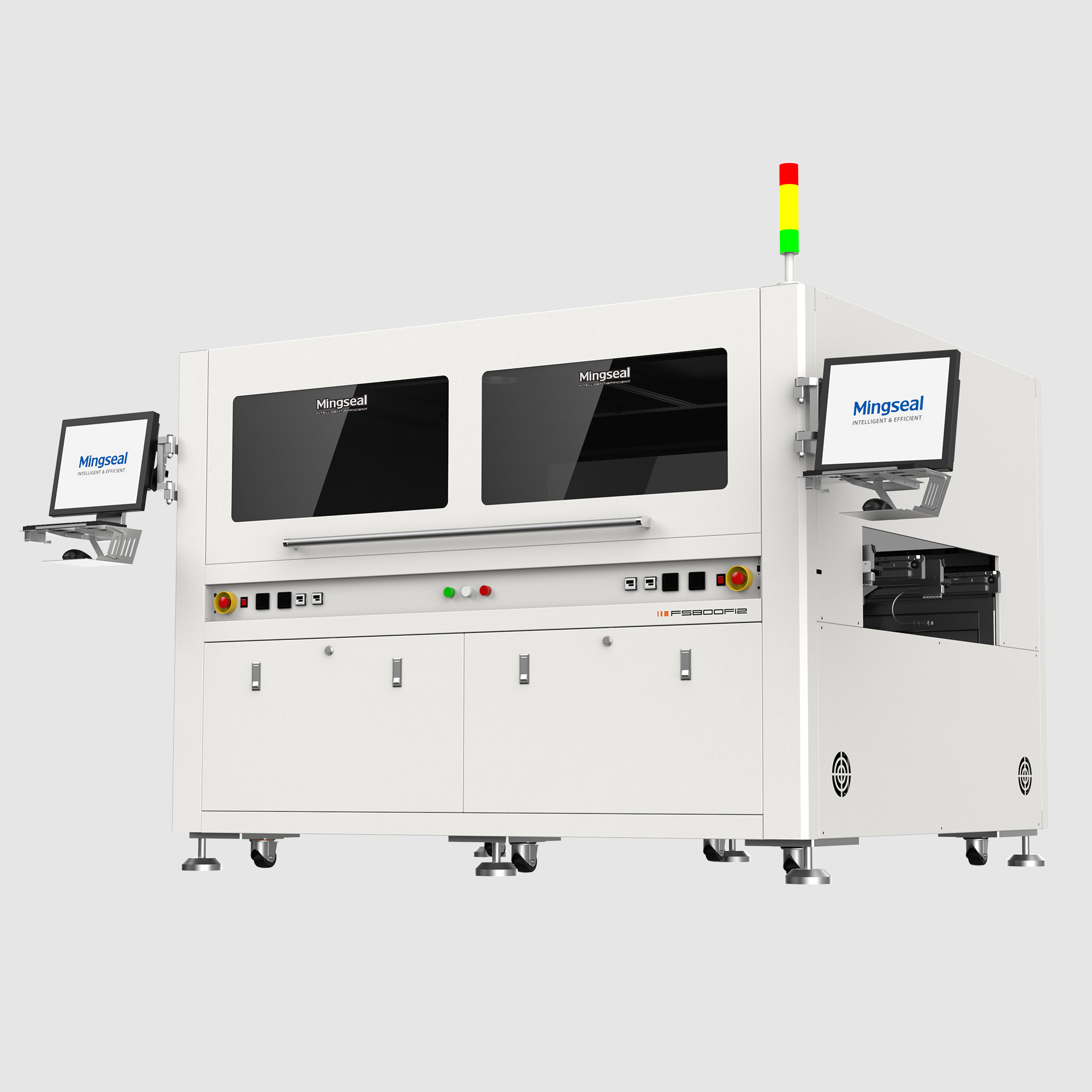

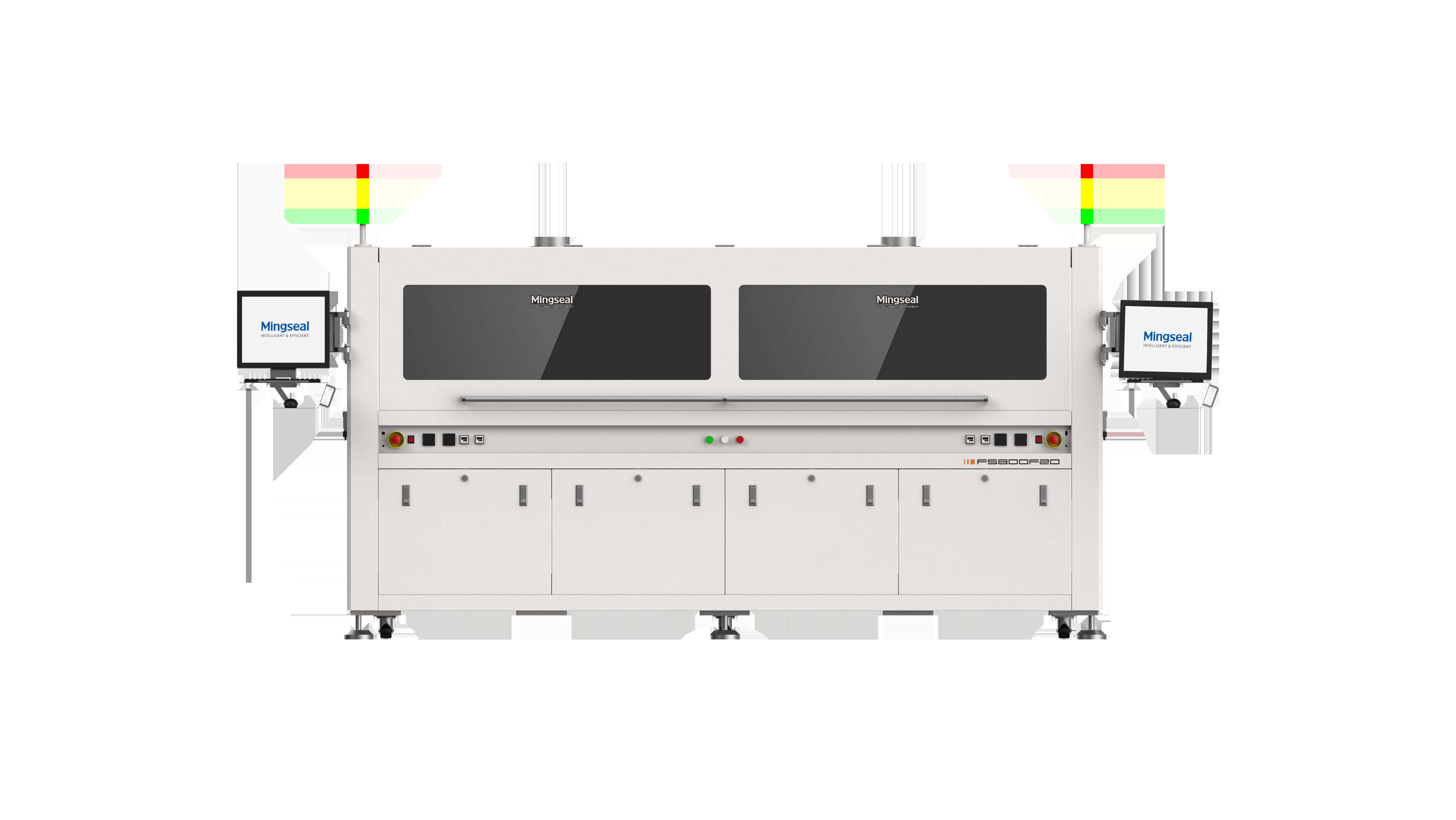

FS800 Fully- Automatic Dispensing Machine   FS800 series automatic dispensing equipment is a high-speed, high-precision and cost-effective online dispensing system which is developed based on the new energy FPC industry. It can meet the FPCs of various sizes, and can support Max. 2100mm-long carrier plate to realize completion in one operation. It can be provided with double heads, double valves and double tracks to improve the CT time. The dispensing process requirements in multiple scenarios can be met with the tilting & rotation module.   Features and Advantages Achievement of High-Quality and High-Speed Precise Dispensing Grating ruler positioning and linear motor drive to ensure accuracy and stability of the equipment. Convenient Equipment Structure Front and rear double-flip doors (gull-wing doors) to facilitate direct observation, debugging and picking & placement of carrier plates. Double display components and alarm lamps making it easier to operate and observe. Efficiency Improvement Double tracks to save the carrier plate turnover time. Supporting double heads and double valves to realize synchronous or asynchronous dispensing. Supporting the supply of glue from large-volume glue tanks to reduce the replacement frequency. High Compatibility Adjustable track width, connectable, compatible with products of different sizes and specifications, and possible connection of multiple sets. Supporting Max. 2100mm×400mm carrier plate to realize completion in one operation.  Special Process Modules               Double-Track Module Optimization or saving of carrier plate turnover time and improvement of UPH Double-Valve Asynchronization Module Suitable for dispensing with two kinds of glues in different processes Tilting & Rotation Module Suitable for side dispensing process 360° Rotation Module Achievement of connector dispensing in five directions Model                                      FS800F12                          FS800F15                               FS800F20 Structure Floor - mounting gull- wing door type Left- right XYZ dispensing actuation modules+Double track Floor - mounting gull- wing door type Dual XYZ motion act u ation modules+Double track Floor - mounting gull- wing door type Dual XYZ actu ationmotion modules+Double track Transmission Method X/Y axis X/Y: Linear motor +Raster Ruler Z axis Servo motor+Screw module X/Y: Linear motor +Raster Ruler Z axis Servo motor+Screw module X/Y: Linear motor +Raster Ruler Z axis Servo motor+Screw module Number of Axis Total 6 axis ( 2 sets XYZ axis ) Total 6 axis ( Dual XYZ act u ation units) Total 6 axis ( Dual XYZ act u ation units) Di m e n s io n s ( W × D × H) 2100 × 1800 × 1600mm 2400 × 1800 × 1600mm 3000 × 1800 × 1600mm Dis pe nsi ng Ra nge ( W × D) 1200 × 800mm 1500 × 800mm 2100 × 800mm Max . speed X/Y/ Z axis XY: 1000mm/s Z: 500mm/s XY: 1000mm/s Z: 500mm/s XY: 1000mm/s Z: 500mm/s Max . Accelerated Velocity X/ Y axis/Z axis XY: 1g Z: 0.5g XY: 1g Z: 0.5g XY: 1g Z: 0.5g Repeatability ( 3sigma) XY: ±0.015mm Z: ±0.005mm XY: ±0.015mm Z: ±0.005mm XY: ±0.015mm Z: ±0.005mm Positioning Accuracy ( 3sigma) XY: ±0.03mm Z: ±0.01mm XY: ±0.03mm Z: ±0.01mm XY: ±0.03mm Z: ±0.01mm T rac k Width Adjust me nt Method Automatic width adjustment Automatic width adjustment ( 1 fixed , 3 movable) Automatic width adjustment ( 1 fixed , 3 movable) T rac k Width Adjust me nt Ra nge 150 ~400mm ( Single track) 150 ~400mm ( Single Track) 150 ~400mm ( Single Track) Z axis Load (kg) 5 5 5 Conveyor Belt Load (kg) 5 10 10 Max . Substrate Thickness ( mm) 0.5 ~ 10mm 0.5 ~ 10mm 0.5 ~ 10mm Max. Height of Devices on Top of PCB 25mm 25mm 25mm Max. Height of Devices on Bottom of PCB 25mm 25mm 25mm Co nveyo r T rac k Optional belt ,chain , Multiplier chains Optional belt , chain , Multiplier chains (customized ) Optional belt ,chain , Multiplier chains (customized ) Camera Pixels ( Optional) 130W black & white ( Optional) 130W black & white ( Optional) 130W black & white ( Optional) Light Source RGB colored Light source ( Optional) RGB colored Light source ( Optional) RGB colored Light source ( Optional) Ope rati ng Syste m Win10 64-bit system Win10 64-bit system Win10 64-bit system I n put Vo ltage 220V AC 50±Hz 220V AC 50±Hz 220V AC 50±Hz

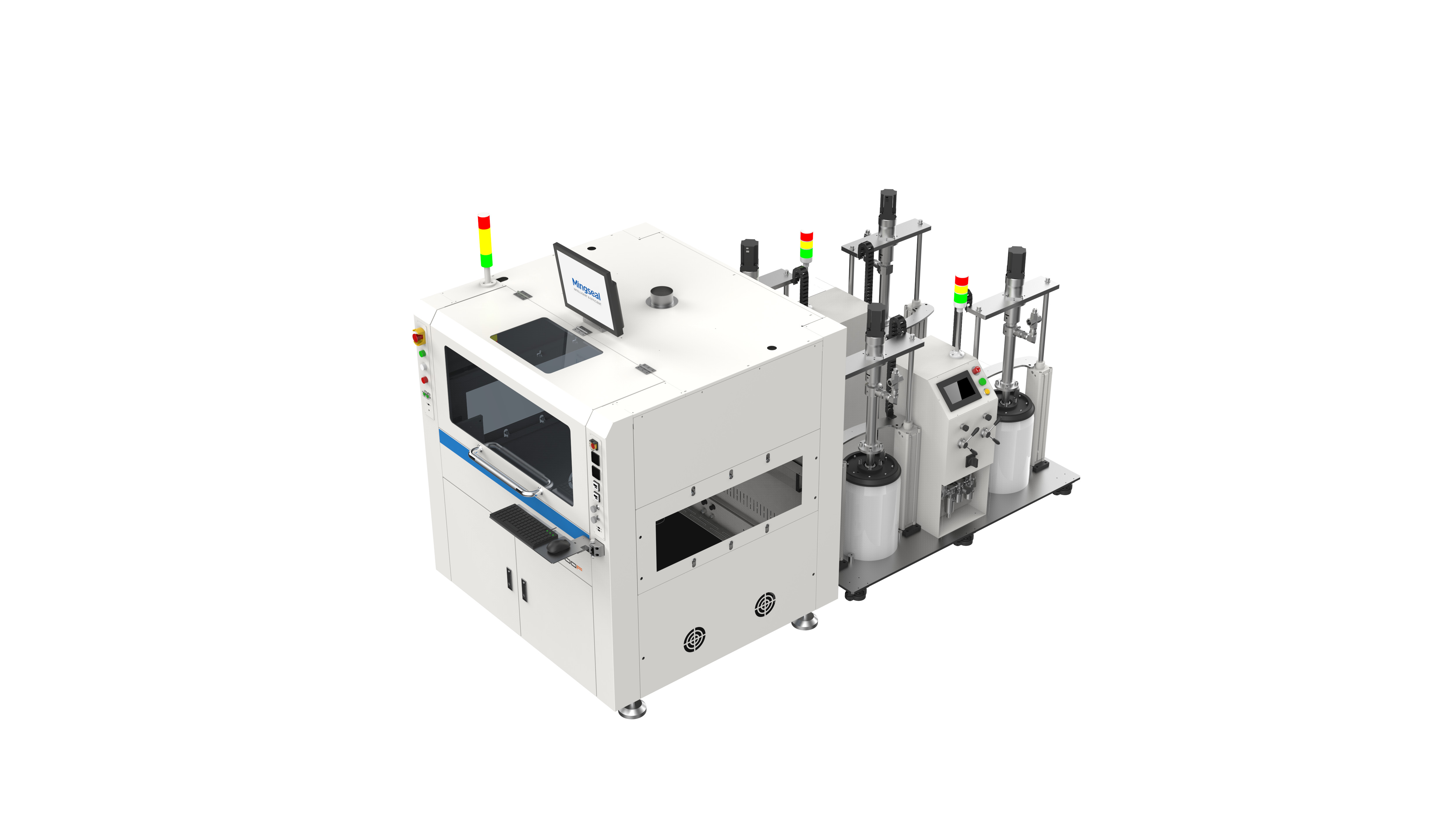

FS700F Online Visual Dispensing Machine FS700 series automatic dispensing equipment is a high-speed and high-precision online dispensing system that is developed based on the size requirements of large products such as power battery FPC and MiniLED. The system can be configured with double-valve synchronization and double-valve asynchronization configurations, among others, to significantly improve operational efficiency. It is mainly used in processes such as NTC encapsulation, MiniLED dispensing, Dam & Fill, Flip-chip, and BGA underfill. Application Field FPC Component Encapsulation Dam & Fill Process for MiniLED Dispensing SMT Component Dispensing Protection Flip-Chip and BGA Underfill Technical Specifications FS700F Online Visual Dispensing Machine Structure Floor-mounted gantry(marble frame +mobile gantry ) Transmission Method X/ Y axis X/ Y:Linear motor + Raster Ruler Z: 轴Servo motor+ Screw module Number of Axis 3 axis Dimensions (W × D × H) 1360 × 1280 × 1550 mm Dispensing Range ( W × D) ( Single valve vertical dispensing) 900 × 600 mm Max. Speed X/ Y/ Z axis X/ Y:1300 mm/ sZ: 500 mm/ s Max. Accelerated Velocity X/ Y/ Z axis X/ Y:1 . 3 g Z:0 . 5 g Repeatability (3 sigma) X/ Y: ± 0 . 015 mm Z: ± 0 . 005 mm Positioning Accuracy (3 sigma) X/ Y: ± 0 . 03 mm Z: ± 0 . 01 mm Track Width Adjustment Method Automatic width adjustment Track width adjustment range 150 ~ 500 mm Z-axis Load 5kg Conveyor Belt Load 5kg Max. Substrate Thickness 0 . 5 ~ 10 mm Max. Height of Devices on Top of PCB 25 mm Max. Height of Devices on Bottom of PCB 25 mm Conveyor Track Stainless steel chains Camera Pixels (Optional) 130 W black & white (Optional) Light Source RGB colored Light source (Optional) Operating System Win 10 64-bit system, FS700 Dispensing Operating System Input Voltage 220 VAC 50 ± Hz Power 3 5 KW

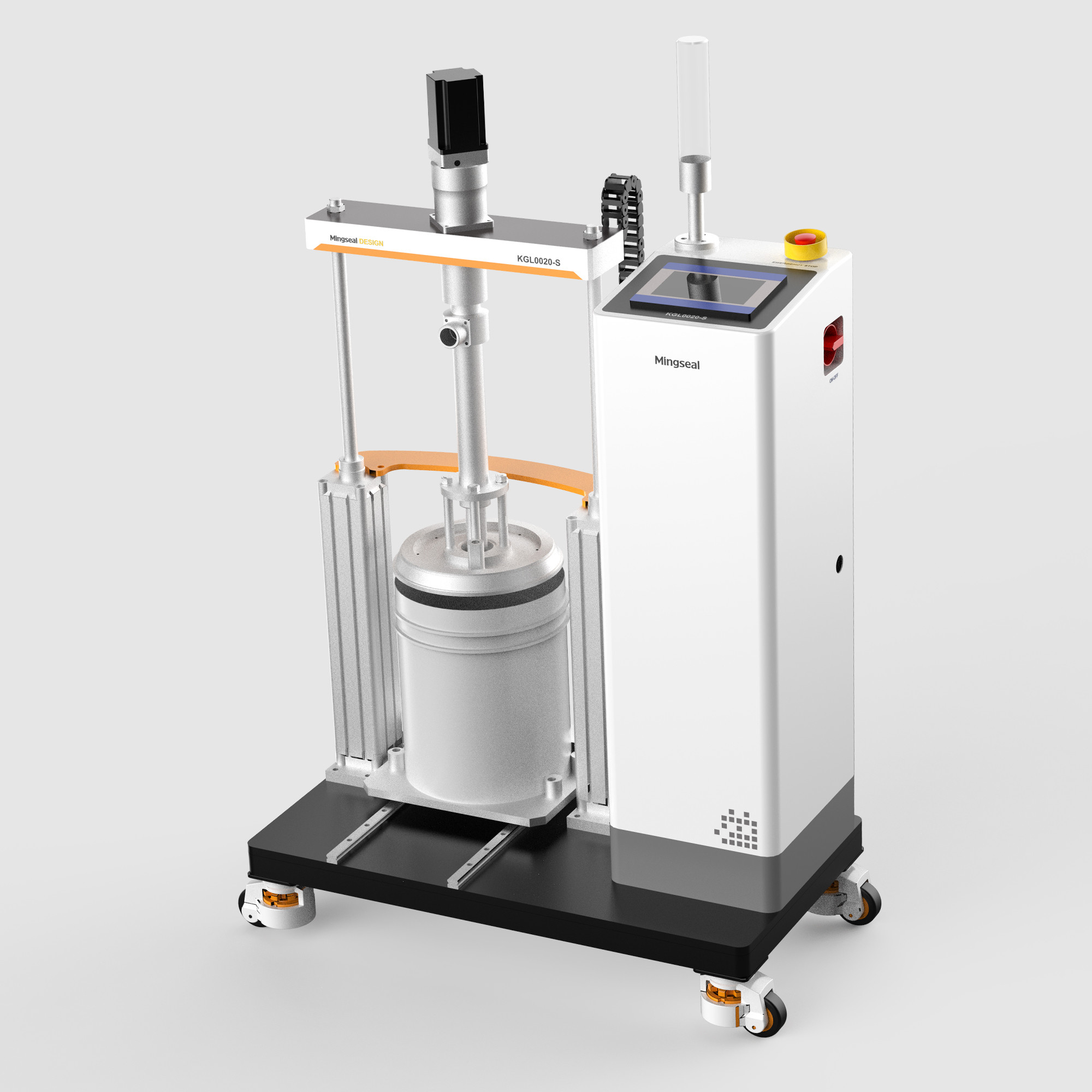

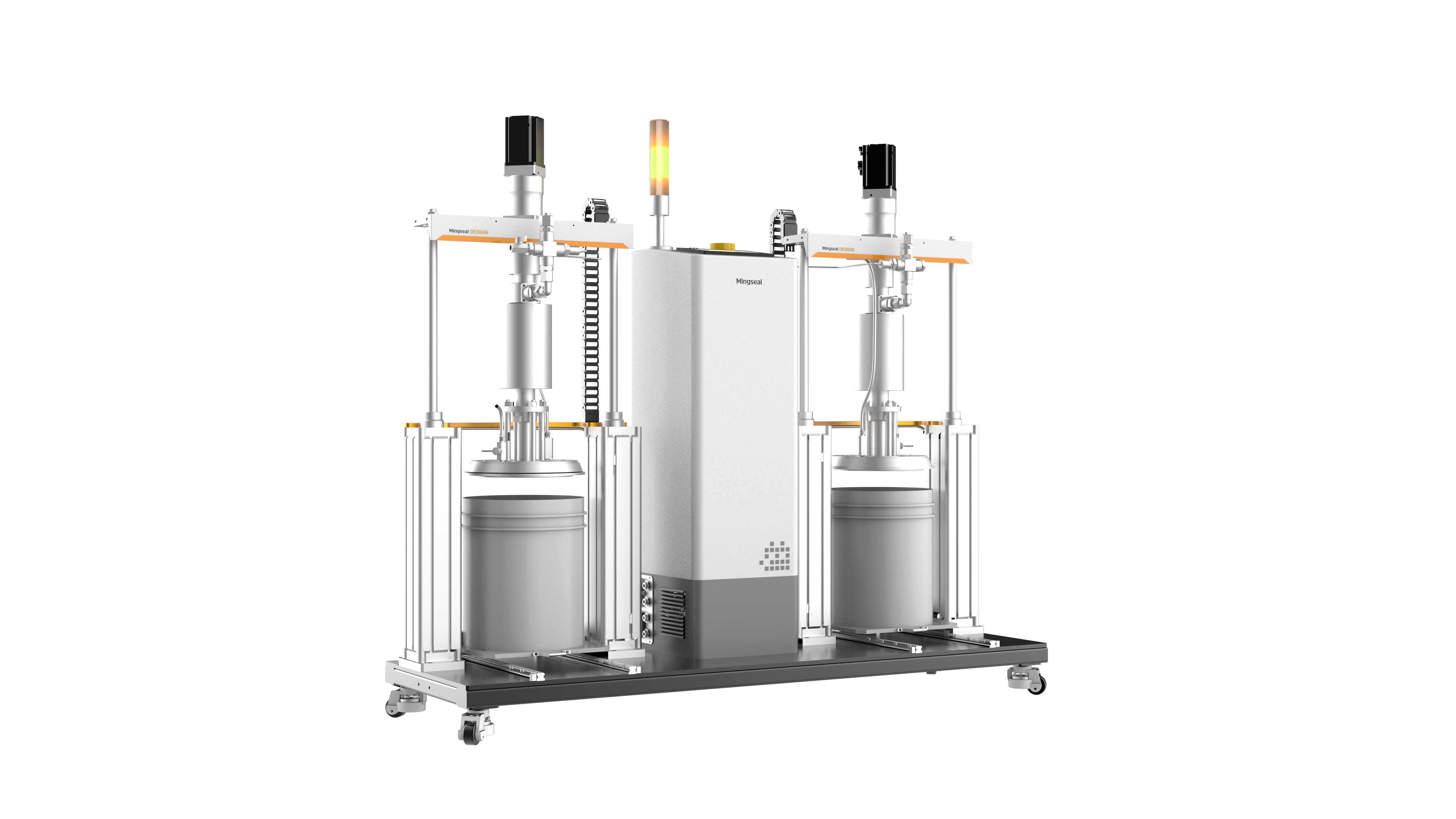

KGL Series Screw Platen Pump   The platen pump can transfer raw materials from the original drum directly to the transfer system or dosing system, avoiding the risk brought by repacking or transfer storage. The platen pump can transfer liquids of medium to high viscosity. The platen pump is servo-driven, which effectively reduces the working noise and saves a lot of energy. Single-component and two-component according to glue characteristics and application scenarios.   Features and Advantages Directly used with standard glue barrels, no need to transfer material to other containers and reducing material waste to a minimum Suitable for adhesives with high viscosity, poor fluidity and high solids content, up to 500000 CPS; Uniform quantitative and continuous output of adhesives serving as a feeding and conveying device for precision dispensing equipment; Compact size, light weight, simple operation, can be easily installed and operated; Avariety of pump specifications with modular assembly method, suitable for various flow rate range; Low pressure system exerts lower damage to the fluid medium and fluid receiving parts; Heating function and wear-resistant material are selectable.   Processable Fluids Structural Glue Heat-conducting glue Sealant Adhesives Lubricant UV Glue     Dimensions Technical Specifications   Performance Indexes Parameters Glue Flow Rate 40-400mL/min 7mL14mL Glue Output Per Circle optional Dispensing Accuracy deviation ≤ ±5% Fluid Viscosity 0-500000Pa.s Max. Dispensing Pressure 2.5Mpa Feeding Method continuous feeding by Screw Outlet Size G1   KGLS020 Single-component Screw Platen Pump KGLD020 Two-component Screw Platen Pump

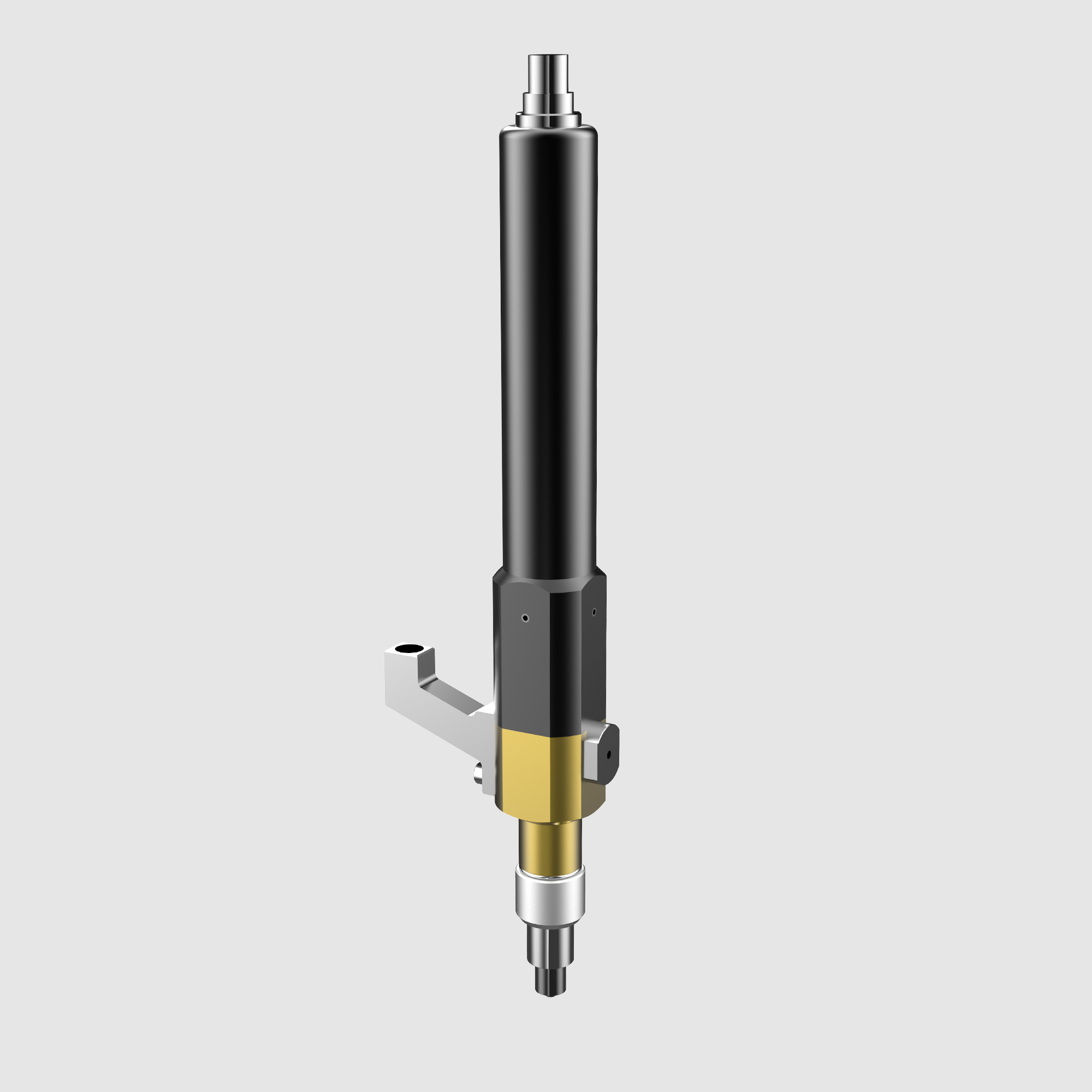

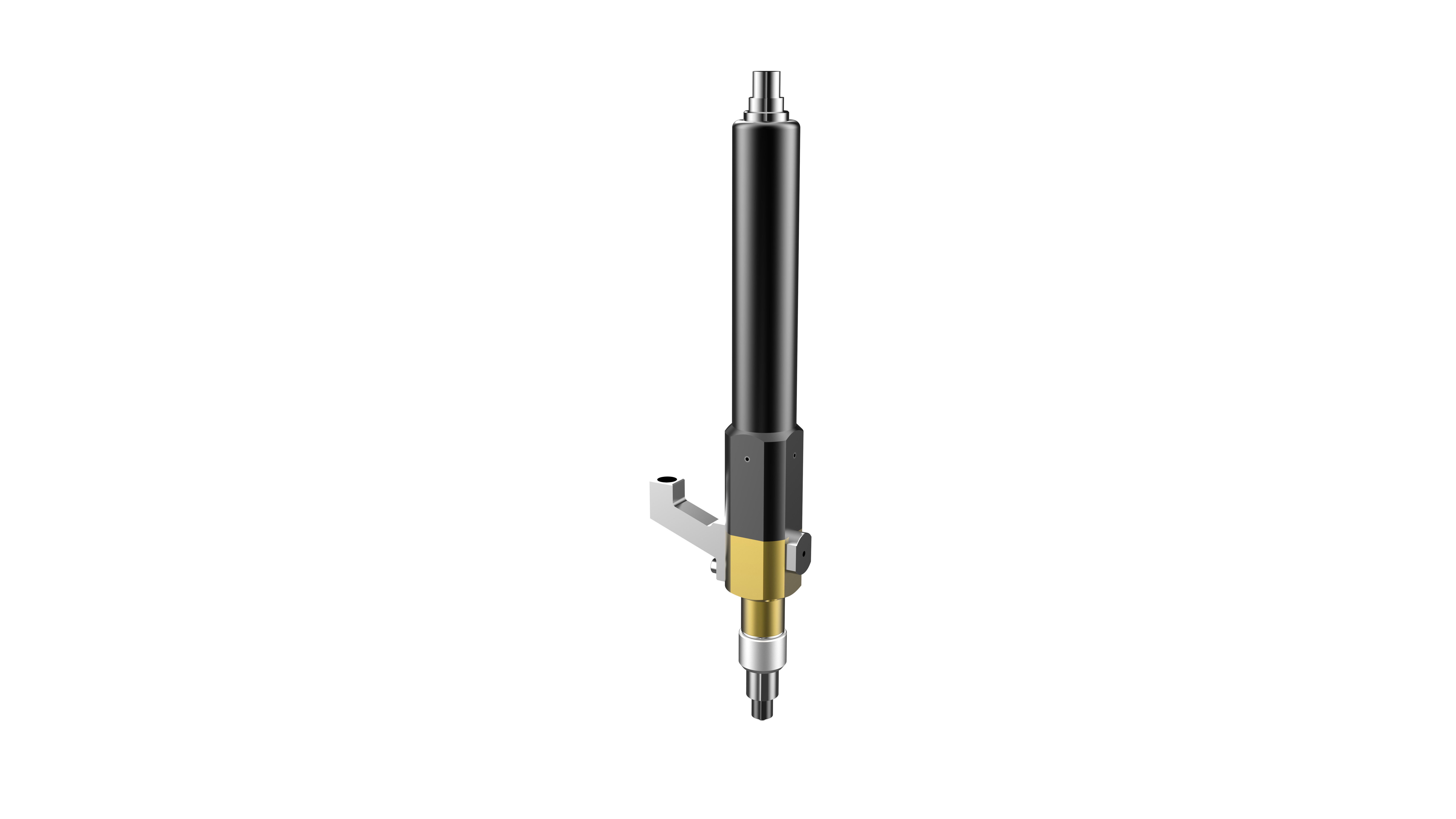

KSP Single-Component Screw Valve   KSP1000 series is a precision volumetric single-component screw valve, which is suitable for applications in which high-precision distribution of single-component fluid, and can be perfect distribution of low, medium and high viscosity fluids.     Eccentric Screw Valve Selection Table Type Model Mixing ratio Flow rate Glue output per circle Minimum dispensing amount Single-component KSP0150 __ 0.01~1.2mL/min 10uL 1uL KSP0450 __   0.05~6mL/min 50uL 5uL KSP0700 __ 0.50~60mL/min 500uL 50uL DSP0150 __ 0.3~1.5mL/min 150uL 15uL DSP1000 __ 2~90mL/min 1000uL 100uL Two-component KDP0300 1:1/2:1 0.02~2.4mL/min __ 2uL KDP03X0 4:1/10:1 0.11~1.32mL/min __ 11uL KDP0900 1:1/2:1 0.1~12mL/min __ 10uL KDP09X0 4:1/10:1 0.55~6.6mL/min __ 55uL KDP0700 1:1/2:1 1~100mL/min __ 100uL DDP0150 1:1/2:1 0.6~3mL/min __ 30uL DDP1000 1:1/2:1 4~180mL/min __ 200uL
