Consumer precision electronics

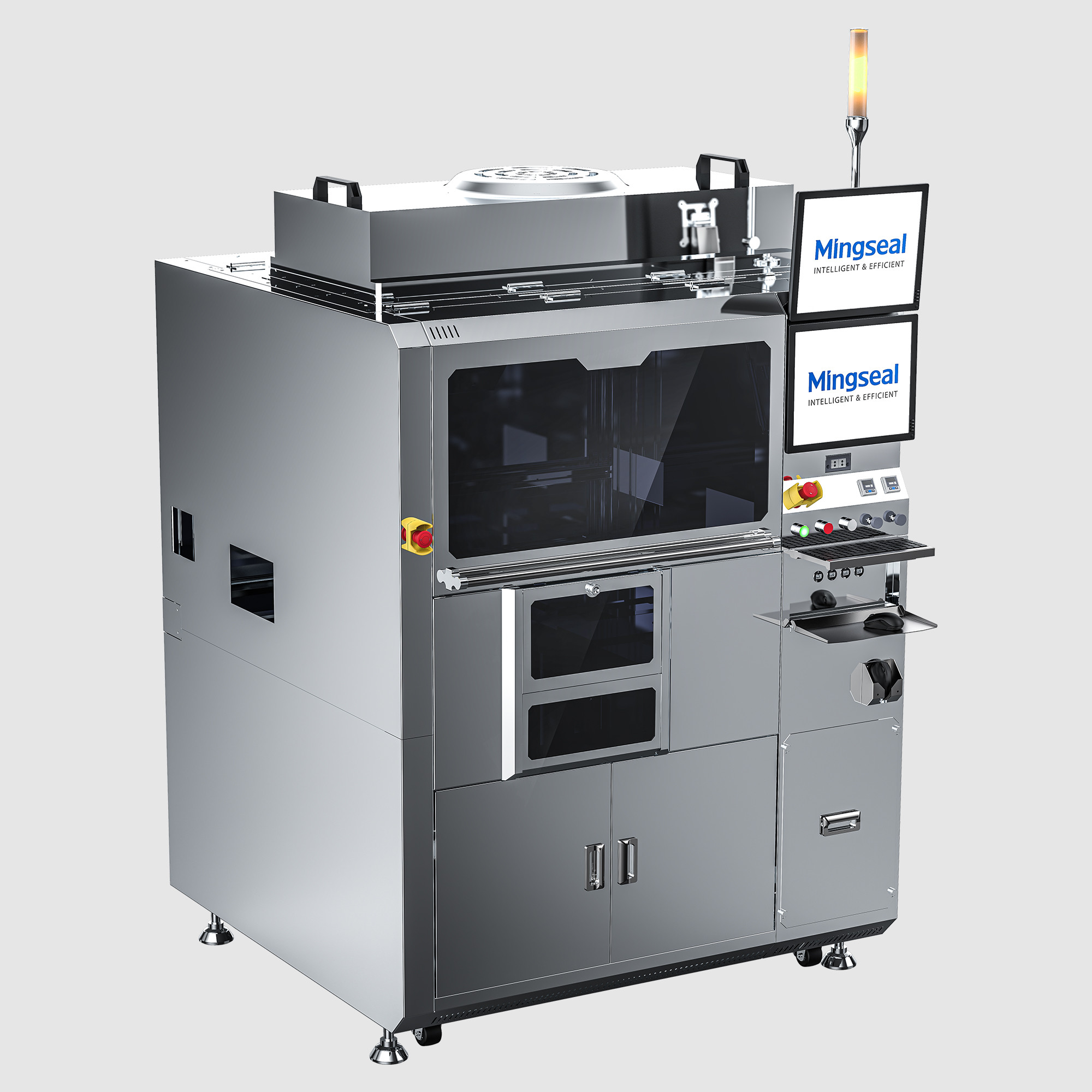

AS200 Series High Speed Die Bonder   The AS200 series high- speed dispensing and bonding machine can be applied in the advanced MEMS bonding process to achieve die bonding of high-density and high-reliability, and supports versatile packages, such as QFN, SIP, LGA , BGA and FC , for a variety of different application scenarios . Various advanced technologies and innovative processes are used in the design and production of the AS200 to ensure its high speed, high accuracy and versatility. The AS200's modular whole-set design allows for rapid inline production and supports " Direct Attach-Flip Chip" function switching, making production more flexible and efficient. In addition, the AS200 can be optionally designed to meet the DAF film heating process through its forward-looking track design , and achieve stable , high-speed and high-precision production through the optimized design of the dispensing and pick & place mechanisms and the reconfiguration of the motion logic. The technical specifications and performance of AS200 meet international standards , making it a high performance , highly reliable and internationally competitive dispensing and die attaching machine, enabling customers to have minimal cost and maximum ROI.   Features and Advantages High-speed / high-precision die bonding process Nearest handling path planning as per enabled modules. Automatic calibration and bonding force monitoring with editable cycles. Active vibration suppression system with <5um amplitude in the die bonding area at full speed. Lightweight and rigid high-speed die bonding module with a max. speed of 15m/s. Expandability and configurability Dust-proof jacket selectable. Loading methods compatible for multiple forms of substrate/frame. Substrate heating by changing tooling supportive. Thin chip picking process by changing configuration supportive. Capable of switchingand  between Face-up bonding and Flip-chip bonding by adding and replacing configurations.   Stable glue control process Visual inspection automatic adjustment of glue volume. Optimal high speed and low vibration glue dispensing path planning. Self-developed high precision dispensing controller of international standard. Innovative lightweight decoupling dispensing mechanism with a max. accelerated velocity of 2.5g.   Advanced technology and innovative process Core functions and technical parameters are on par with international competitors. Core modules are self-developed to ensure subsequent expansion and upgrading. Module-based agile architecture design to build advanced software matrix capability. Capable of handling 12-inch wafers, comparable to competing 8-inch die bonder in terms of footprint.     AC200 Application Fields Sensor Housing Mounting Holder Mounting Reinforcement Plate Mountin Main Camera And Auxiliary Camera Mounting VCM Mounting     Technical Specifications     Model AS200 Machine Size Footprint (WxDxH) 1180 X 1310 X 1700mm Weight around 1400kg Facilities Voltage 220 VAC(@ 50/60Hz) Rated power 1300VA Compressed air Min. 0.5MPa Vacuum level Min. -0.08MPa Nitrogen 0.2 - 0.6MPa Wafer and Chip Size Wafer size 6" - 12" Wafer table size 8" - 12" Chip size 0.25 - 15mm Process types Epoxy DA/FC/DAF Substrate/Lead frame Size Width 20 - 110mm Length 110 - 310mm Thickness 0.1 - 2.5mm Process Bond force 0.3 - 20N Wafer table rotation 0 - 360° Min. cycle time 180ms Accuracy/Productivity Standard accuracy mode ±20um/0.5 ° ( 3σ) High accuracy mode ±12.5um/0.5 ° ( 3σ) Uptime >98% Mean time without failure >168 hours

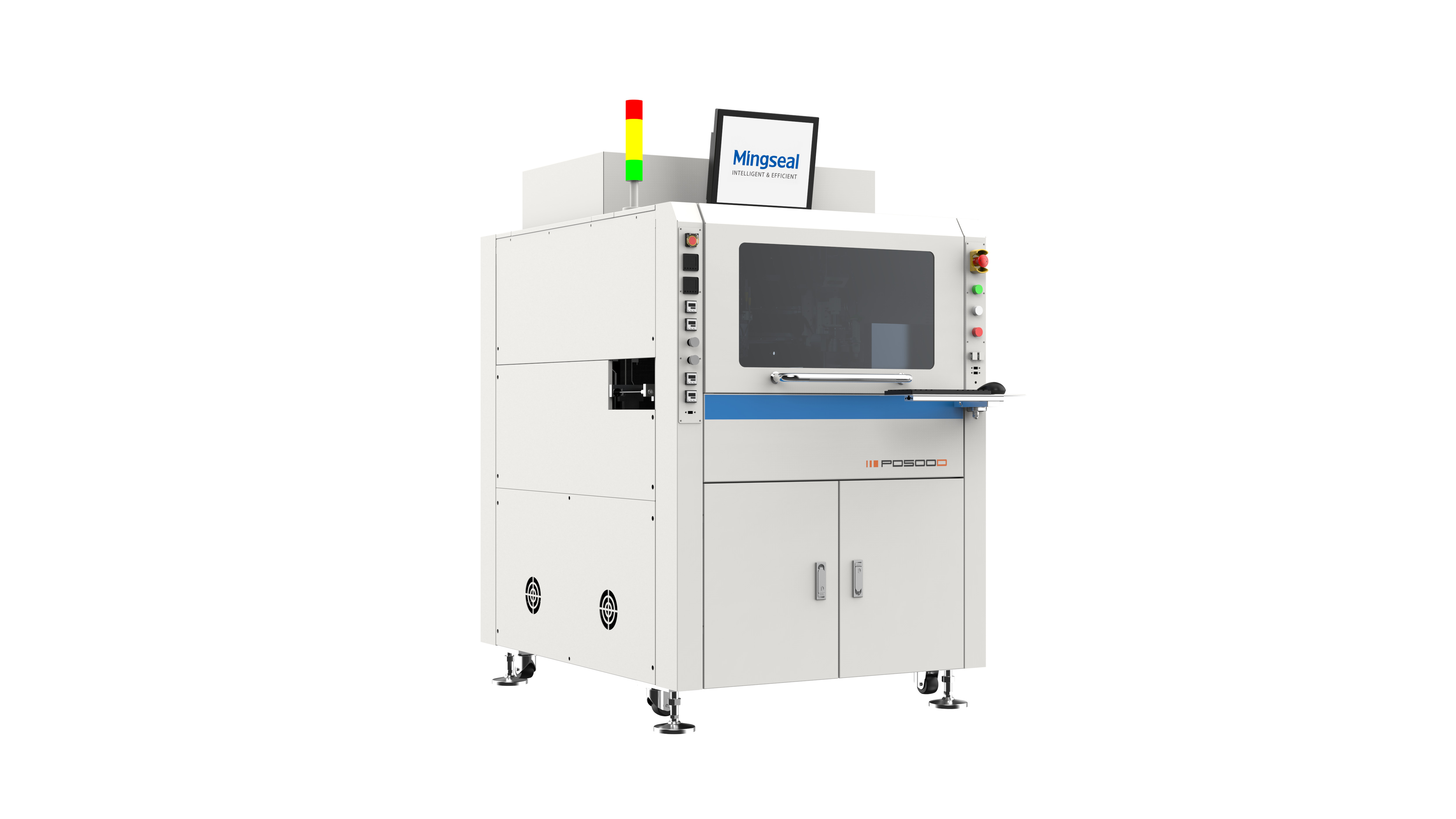

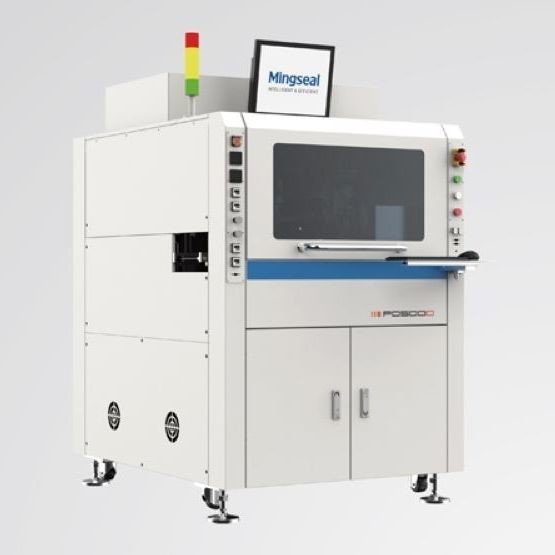

GS600M Online Visual Dispensing Machine GS600M is a fully- automatic online dispensing platform developed based on the needs of the MEMS industry. It can provide one- stop solutions for on- line ASIC chip encapsulation, precision solder paste dispensing and multiple fool- proof detection, etc. in the MEMS process. High- quality control of the entire production process is realized.The on-line workstation operation can also be selected. Features and AdvantagesOn-line ModeYield ImprovementWork positions are inspected before and after operation, and the fi nal station is professionally inspected to achieve multiple fool proof.Full AutomationThe on- line mode is used to minimize manual intervention.Prevention of Whole Line DowntimeOperation tracks / conveyor tracks are separated, so that shutdown of a single machine does not affect the operation of the whole line. Application FieldsMEMS Microphone MEMS accelerometer MEMS Barometer Technical SpecificationsModel GS600MApplication FieldsDie form packaging of lead frame, substrate, shellApplicable ProcessChip Encapsulation,Solder paste gluing ,Potting ,component reinforcementCleanliness LevelCleanliness of working areaClass 100 (Class 1000 workshop) Class 10 (Class 100 workshop)TransmissionSystemTransmission mechanismsX/Y:Linear motorZ:Servo motor&Screw moduleRepeatability (3sigma)X/Y: ±0.010mm Z: ±0.015mmPositioning accuracy (3sigma)X/Y: ±0.015mm Z: ±0.025mmMax. movement speedX/Y :1000mm/s Z: 500mm/sMax. accelerated velocityX/Y: 1g Z: 0.5gGrating resolution1 μ mZ axis height calibration&compensation MethodLaser sensor (Laser sensor)Laser sensor accuracy±0.01mmDispensingCapabilityDispensing methodPiezo-pump (Mingseal self-developed)Glue control accuracy±3%/1mg(as per actual adhesive specific gravity)Min. single dot glue weight0.001mg/dot(as per actual adhesive specific gravity)Max. fluid viscosity200000cpsMax. jetting frequency1000HzRunner/nozzle heating temperatureRoom temperature~200℃Runner/nozzle heating temp. deviation±2℃FacilitiesFootprint W× D × H2050× 1535×2085mmWeight1.5tPower supply200~240VAC,47~63HZ(Single-phase voltage adaptation power supply)Electric current35APower7KWInhale5.0-7.0 kg/cm2

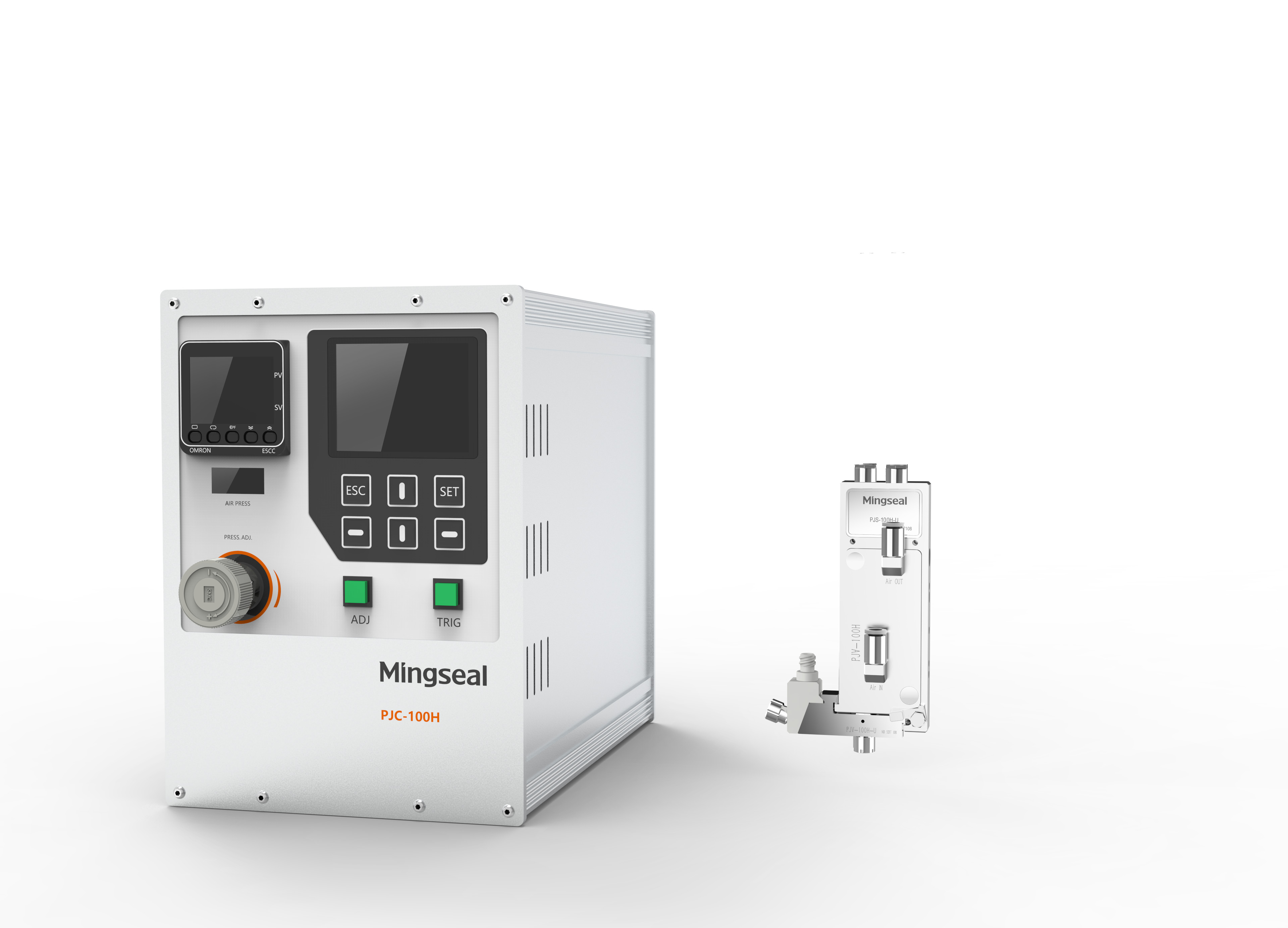

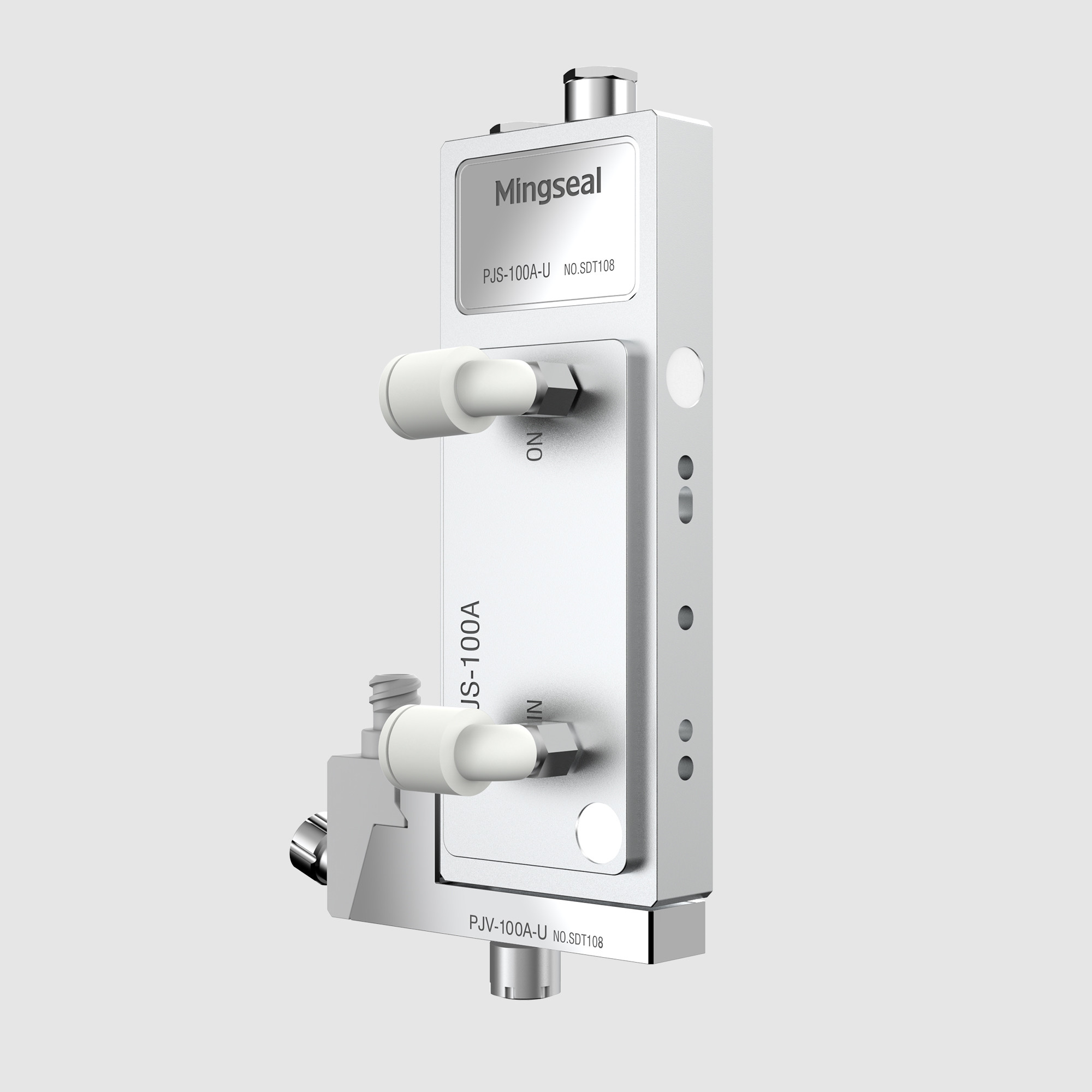

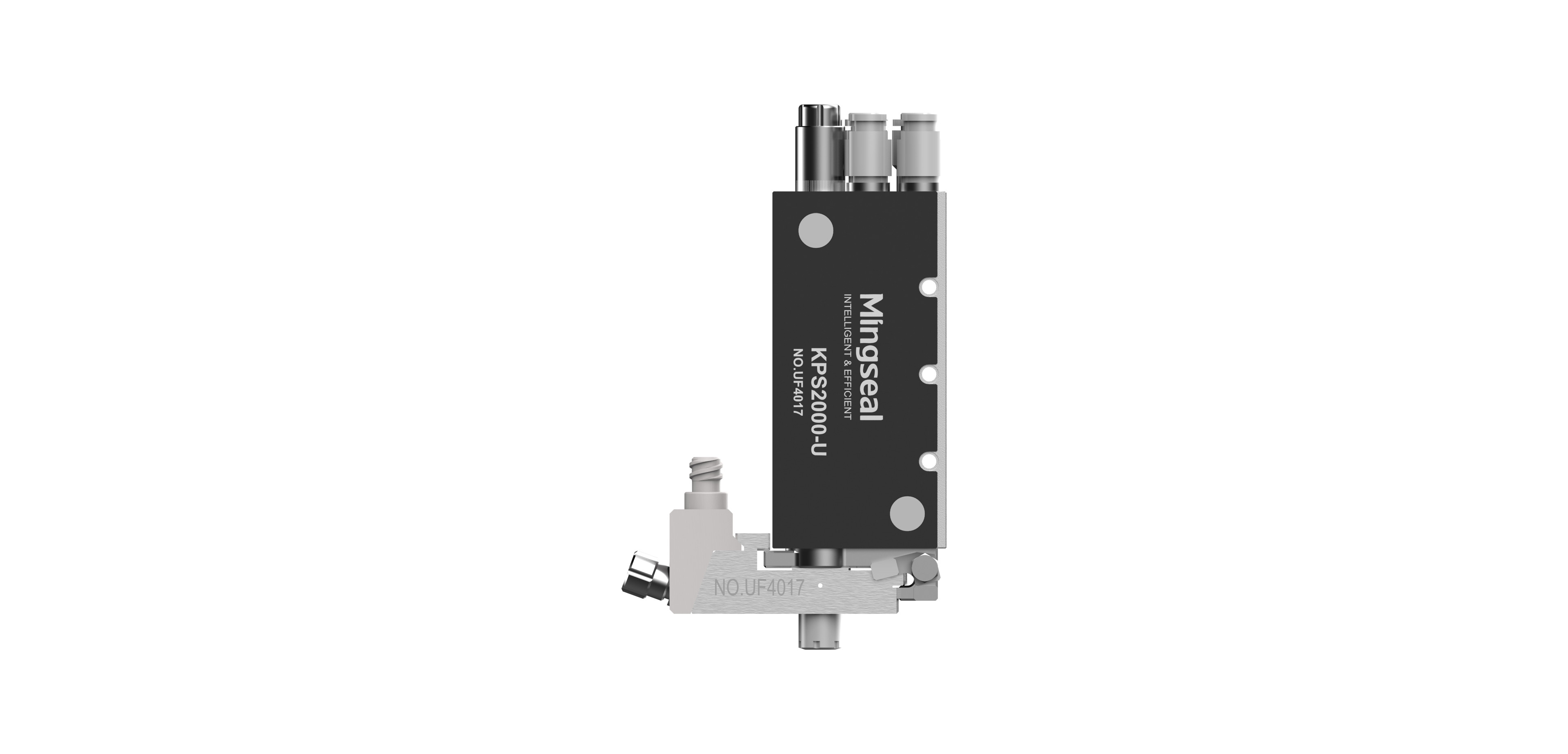

PJS-100 Series Piezoelectric Jetting Valve   This series of piezoelectric jetting valve is a non-contact jetting system of high speed and precision which can process low,medium,high and ultra-high viscosity fluid;according to product features,there are two valve bodies to choose from,including PJS-100A with modular design,PJS-100H with quick dis-assembly and quick-change function of flow channel,and other derivative models used in specific working conditions.   Combined with piezoelectric valve controller and temperature controller,it can be widely used in noncontact high-precision spraying operations in the fields of advanced semiconductor manufacturing and mobile electronic device packaging.     Features and Advantages ◆ Minimal dosing amount 0.5nl,thinnest line width 0.2mm ◆ High amount stability with deviation under ±2% ◆ Processable fliud viscocity range 0-200000cps ◆ Excellent control of glue scattering under 0.5% and great management of bubble.     Processable Fluids Type PJS·100A Plezoeloctric Jotting Valve PJS·100H Plezoeloctric Jotihg Vake Supply Prassure Range 01~8ar 01~8Bar ecosity Rang Medium and high viscosity up to 200000mpas Mediun and high viscosity up to 350000mpss Minlmal Dot Dameter 02mmiralated to atheshe) 0.15mm (raiated to adheske) Mnlmal Lne Wdth 0.25mm(ralated to athesive) 017mm (ralated to adhesve) Minimal Dosing Amount 0.5n&(CPK>1337 0.5nL(CPK>133) Amount Accuracy ±1%(ralntst to acheswe) ±1%ralatod to atheshe) Contnuge.jettngfreg 000HE 1000He Corroslon Reslstance All water-besed glue,organsc sowents,weak aads and aikali All water tased gsue,organic solvents,weak aods and akzli Dimensions(W*D*H 119×75×15mm(runner assembled,thermal connectees escludes? 123×75×I5mm(runner assembled,thermal comnec tars eaduded) Welght 420g(runner assemhled) 440g(runner assemoled} Warking Temp.Range 0~40c 10~50℃ Maln Functbns   Rapid olsassomblyof tappot and runner Types PJC-100A Confroller PJC-100H Controler usa Param,and min.step 0.01-1000.00ms,0.01ms 0.01-1000.00ms,0.01ms Dlepensing Frequency 1-1000HZ 1-1000HZ DAgdy TTT t iT TETcnu iT ParnTdnR RRHOF 10 sets 10 ses Reserved Interface Supporting 5TD,R5232/R5485 MODBUS RTU agreement Supporting 5T0 R5232/R5485 MODBUS RTU agreement Dimenskons (W*D*H) 5×187×287mm 270×160×220mm Weloht 3kg 4kg Red Pour 215W 275W AC input AC 220V±20% AC220V±20% Maln Functlons   Valve body temperature monitorng and alamn function;:error output     heating status output:controller statusoutput

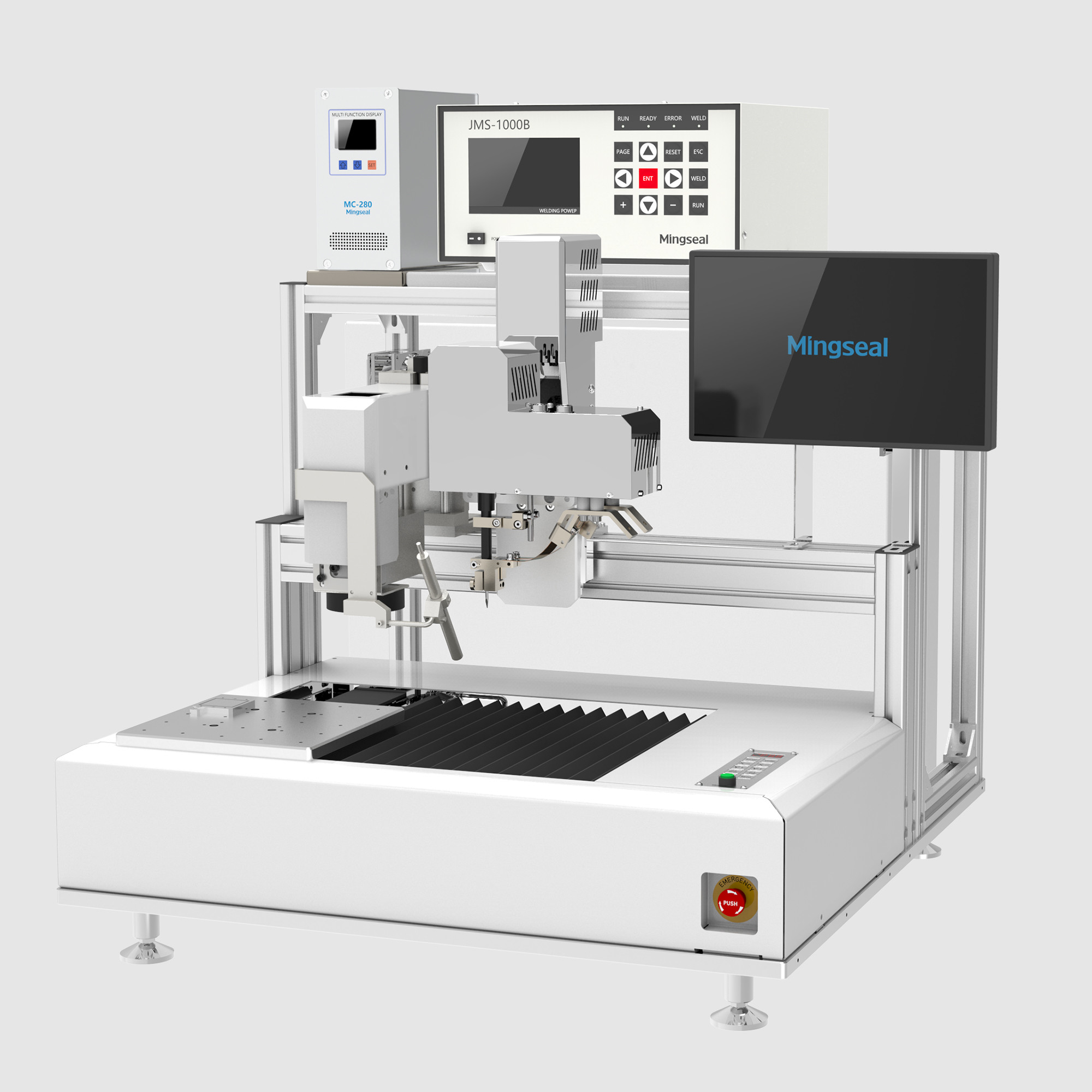

DW200P Precision Spot- welding Machine     DW200P is a high-precision desktop visual resistance welding system, which can realize real-time pressure inspection to give an alarm when the parameter range threshold is exceed- ed, precisely control the pressure and energy, and improve the quality control capability.     Features and Advantages ​Yield Improvement Real- time welding pressure inspection to give an alarm when the preset range is exceeded. Precise energy control to effectively prevent burns around the pad. Precise pressure control to effectively prevent the pad from collapsing.   Suitable for Automated Production Line The head and power supply combination occupies a small space and is light- weight. It supports communication with the MES system, and can beflexibly integrated in the automated production line.   Solving Potential Problems of Poor Welding Insufficient energy or pressure Pad Collapsing Too much pressure.   Substrate Warpage and Peripheral Burns Excessive energy caused by too high pressure and too long contact time.       Targeted Solutions   High-Precision Energy Control Closed-loop energy control to quickly achieve stable output and effectively prevent the pad burns caused by energy diffusion.     High-Precision Pressure Control Closed-loop pressure control with the error of ±5g, and real-time pressure inspection to give an alarm when the threshold is exceed.     Application Fields Micro Speaker / Receiver Flat Vibration Motor FPC Product lead Voice Coil Motor Linear Vibration Motor     Technical Specifications   Model                                               DW200P Structure Frame structure Desktop         Product Application Fields Application fields motor, electroacoustics Fixture width range (W *D) 200 x 200mm Max. fixture weight 5kg (with Product ) Transmission mechanisms Servo motor&Screw module Repeatability X/Y: ±0.015mm       Motion System Positioning accuracy X/Y: ±0.025mm Max. movement speed X/Y:500mm/s Z:100mm/s Max. accelerated velocity X/Y:0.5g Z:0.1g Visual positioning method Mark/Product appearance features   Vision System Recognition accuracy ±1Pixel         Welding Media Requirement     Welding pad material metals like copper, tin shape Regular shape and clear boundary size min. size≥8 times of wire diameter surface condition flat and clean   Conductor wire shape Enameled wire or bare copper wire size Diameter φ0.02~φ0.1mm           Facilities Dimensions W*D*H 700×740×800mm Machine weight 100KG Power supply 220V AC 50Hz Power 900W Inhale 0.5Mpa,150L/min Working ambient temp. 0-40℃ Working ambient relative humidity 20-90% (no dewing)

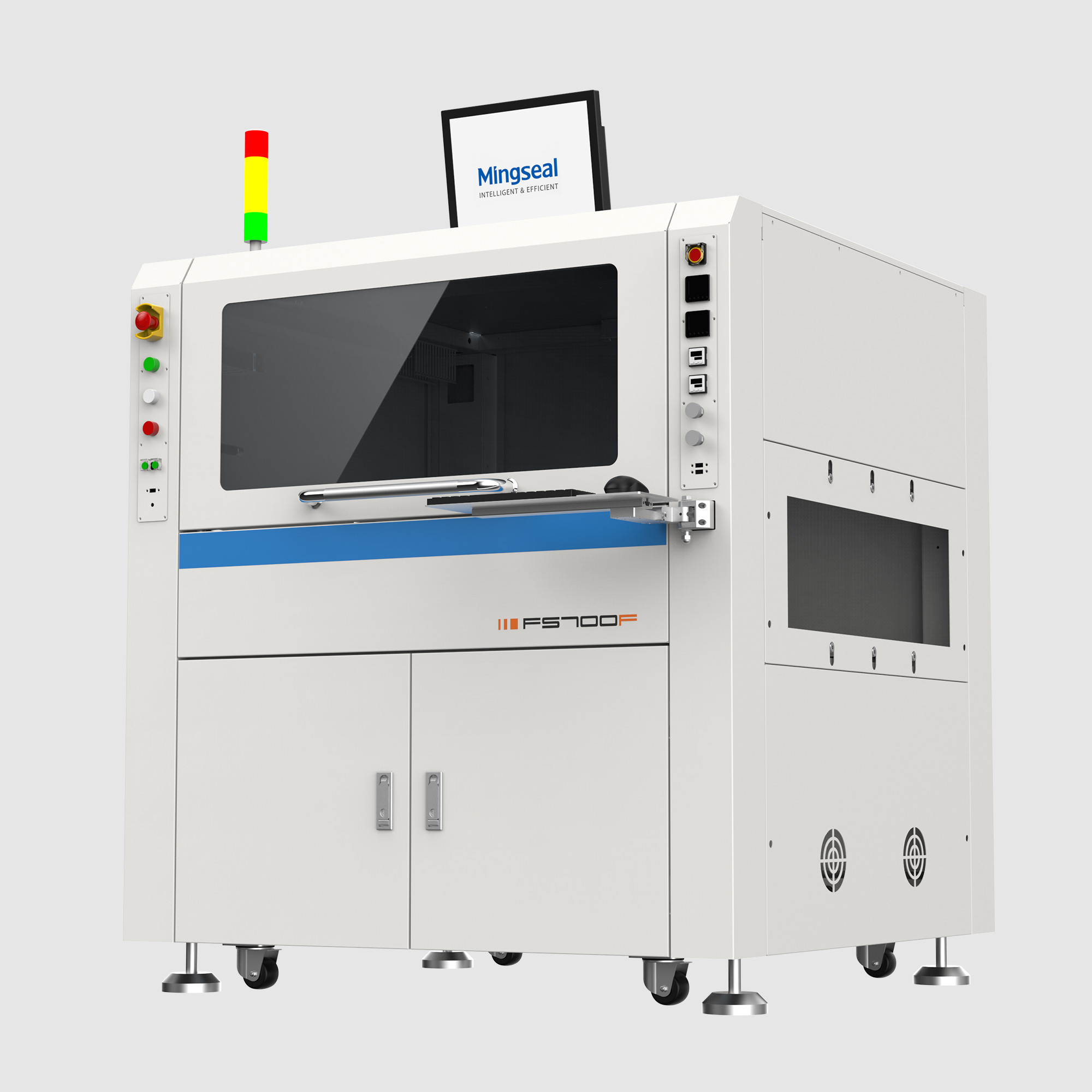

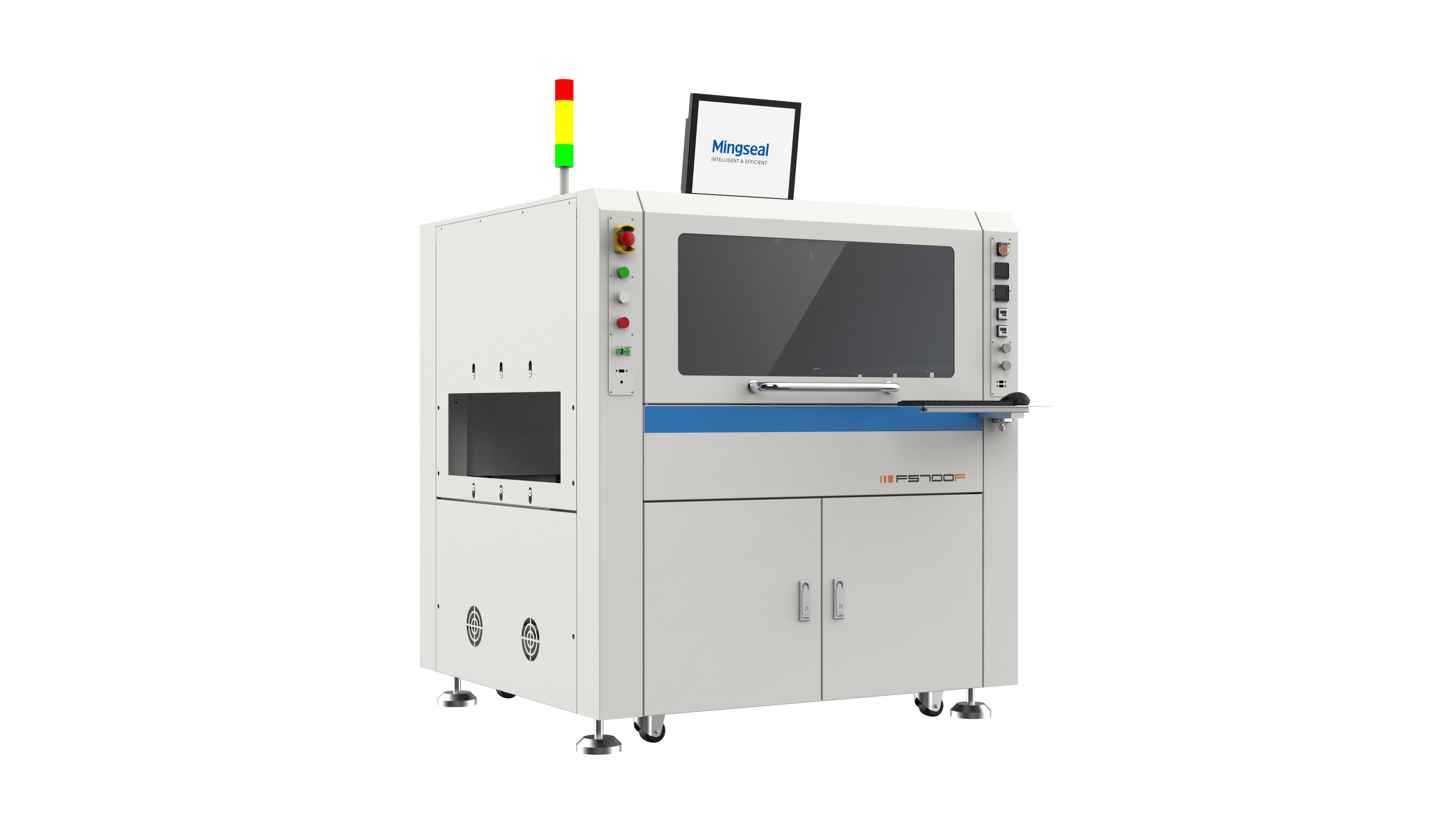

FS700F Online Visual Dispensing Machine FS700 series automatic dispensing equipment is a high-speed and high-precision online dispensing system that is developed based on the size requirements of large products such as power battery FPC and MiniLED. The system can be configured with double-valve synchronization and double-valve asynchronization configurations, among others, to significantly improve operational efficiency. It is mainly used in processes such as NTC encapsulation, MiniLED dispensing, Dam & Fill, Flip-chip, and BGA underfill. Application Field FPC Component Encapsulation Dam & Fill Process for MiniLED Dispensing SMT Component Dispensing Protection Flip-Chip and BGA Underfill Technical Specifications FS700F Online Visual Dispensing Machine Structure Floor-mounted gantry(marble frame +mobile gantry ) Transmission Method X/ Y axis X/ Y:Linear motor + Raster Ruler Z: 轴Servo motor+ Screw module Number of Axis 3 axis Dimensions (W × D × H) 1360 × 1280 × 1550 mm Dispensing Range ( W × D) ( Single valve vertical dispensing) 900 × 600 mm Max. Speed X/ Y/ Z axis X/ Y:1300 mm/ sZ: 500 mm/ s Max. Accelerated Velocity X/ Y/ Z axis X/ Y:1 . 3 g Z:0 . 5 g Repeatability (3 sigma) X/ Y: ± 0 . 015 mm Z: ± 0 . 005 mm Positioning Accuracy (3 sigma) X/ Y: ± 0 . 03 mm Z: ± 0 . 01 mm Track Width Adjustment Method Automatic width adjustment Track width adjustment range 150 ~ 500 mm Z-axis Load 5kg Conveyor Belt Load 5kg Max. Substrate Thickness 0 . 5 ~ 10 mm Max. Height of Devices on Top of PCB 25 mm Max. Height of Devices on Bottom of PCB 25 mm Conveyor Track Stainless steel chains Camera Pixels (Optional) 130 W black & white (Optional) Light Source RGB colored Light source (Optional) Operating System Win 10 64-bit system, FS700 Dispensing Operating System Input Voltage 220 VAC 50 ± Hz Power 3 5 KW

PD500D Five-Axis Linkage Dispensing Machine   PD500D series five-axis linkage dispensing system is a piece of high-precision 3D dispensing equipment which is developed based on the dispensing requirements of smart wearable products such as mobile phone middle bezel, VR/AR frame and TWS shell. It can realize not only traditional linear interpolation, circular interpolation and curve interpolation, but also space arc interpolation, space ellipse interpolation and space involute interpolation, etc., and has the ability to dispense on complex irregular surfaces.     Features and Advantages Ease of Operation 3D import: The dispensing trajectory is quickly generated by importing the product 3D diagram. Real-time display of dispensing trajectory: The dispensing trajectory path is always consistent with the product overturning posture, improving the convenience of programming. Graphical programming: The five-axis algorithm is optimized, so that the running trajectory of the camera is the real dispensing path, which is convenient for debugging. Achievement of High-Quality and High-Precision Dispensing 3D guidance: The dispensing trajectory is automatically generated by line laser scanning of the product to ensure the dispensing accuracy. Position comparison mode: The uniform transition of the arc dispensing is realized by means of frequency conversion. The linear motor platform is adopted to ensure the equipment accuracy and stability. Efficiency Improvement Double-station design: The left and right stations work alternately to save the loading and unloading time. Back-to-back design: Dispensing operation and glue path inspection are carried out simultaneously. Quality Control 3D inspection: Online glue path inspection is realized by line scanning laser. Solving of Incoming Material Consistency Problem Visual edge grabbing: Precise control of dispensing position is realized by feature point position compensation. Intelligent Closed-Loop Control System The MES production traceability system can be expanded. CCD Mark positioning function and CCD programming are supported.   Special Process Modules Online Pick & Place and Handling Modules Unmanned loading and unloading are realized by automatic picking + handling to save the labor costs. Double Y-Axis Conveying Module The double stations work alternatively to improve the production efficiency. 3D Vision Module 3D guidance: The dispensing trajectory is automatically generated by line laser scanning of the product to ensure the dispensing accuracy. 3D inspection: Online glue path inspection is realized by line scanning laser. Dispensing Detection Execution Module Back-to-back design: Dispensing operation and glue path inspection are carried out simultaneously to improve the production efficiency. Application Fields TP Side Dispensing Curved Screen Dispensing Flexible Screen Side Dispensing Smart Bracelet / Watch Dispensing Smart Ring Dispensing LiDAR Optical Component Dispensing Special-Shaped Screen Dispensing Mobile Phone Middle Bezel Dispensing Flexible Screen FPC Reinforcement VR Glasses Dispensing TWS Product Dispensing     Technical Specifications Model PD500S PD500D Dimensions W*D*H 770× 1200×2000mm( w/o tricolour light) 1087x1630x2000mm Positioning Accuracy X1/Y1/X2/Y2:±0.008mm Z1/Z2:±0.01mm B1/B2:±2Arc min C1/C2:±26Arc sec X1/Y1/X2/Y2: ±0.008mm Z1/Z2: ±0.01mm B1/B2:±2Arc min C1/C2:±26Arc sec Repeatability X1/Y1/X2/Y2:±0.003mm Z1/Z2:±0.005mm B1/B2:±10Arc sec C1/C2:±1.2Arc sec X1/Y1/X2/Y2:±0.003mm Z1/Z2:±0.005mm B1/B2: ±10Arc sec C1/C2:±1.2Arc sec Max. Movement Speed X1/Y1/X2/Y2:1300mm/s Z1/Z2:500mm/s B1/B2: 1rps C1/C2: 4rps X1/Y1/X2/Y2:1300mm/s Z1/Z2:500mm/s B1/B2: 1rps C1/C2: 4rps Max. Accelerated Velocity X1/Y1/X2/Y2:13000mm/s² Z1/Z2:5000mm/s² B1/B2: 10rps² C1/C2: 40rps² X1/Y1/X2/Y2:13000mm/s² Z1/Z2:5000mm/s² B1/B2: 10rps² C1/C2: 40rps² Z axis Motion Range 200mm 200mm Max. Dispensing Range 200×200mm 200×200mm   Standard Cleaning Module,Audible and visual alarm system,Vision Module,Air pressure regulation module,Piezoelectric Valve,Standard Operation Software,Needle calibration module,IPC Industrial Control Computer,Nozzle heating device,Single-station(single Y axis actuation units ) Optional Low liquid level detection and alarm,Weighing module ,Laser calibration module,Special cleaning module,Dispensing Module ( Screw Valve/Precision Dispensing Controllers,etc) , Automatic loading/unloading,Bar code&QR code recognition,3D contouring Track programming guidance,3D contouring glue shape inspection,Duplex station (Dual Y axis actuation units ) , Front and rear dispensing (Dual X actuation units ) ,on-line conveyor modules

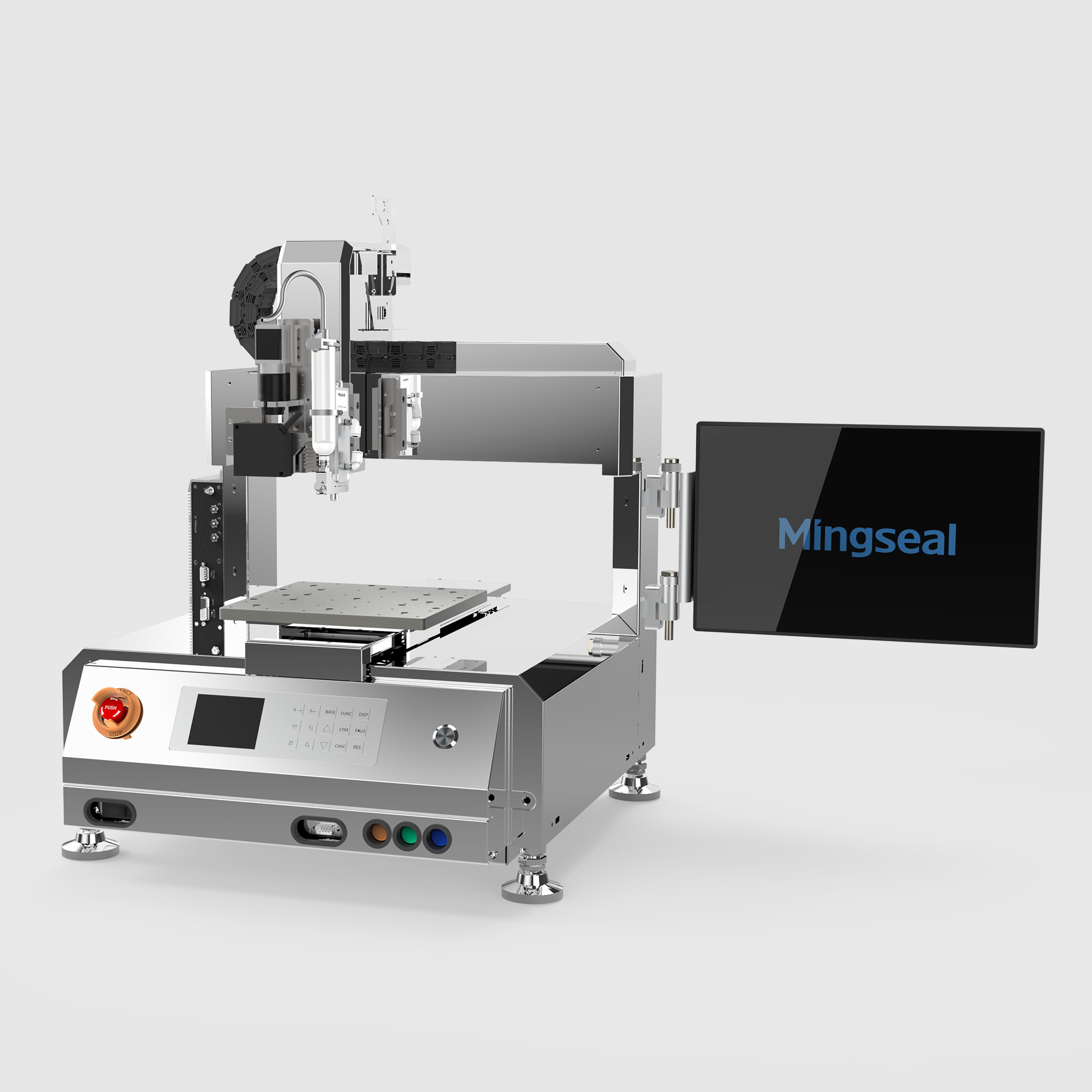

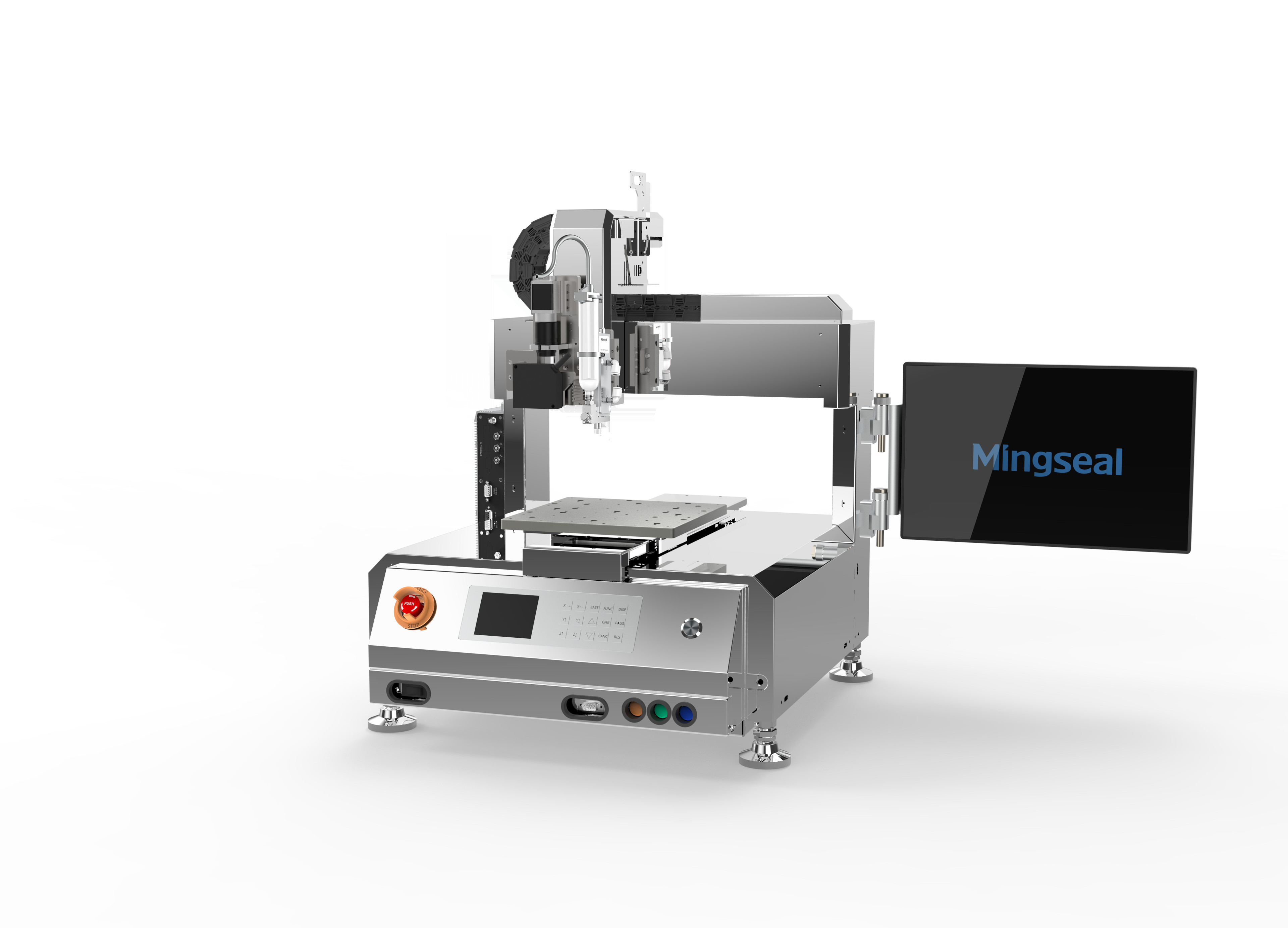

VS300 Desktop Visual Dispensing Machine   The VS series is a high-precision visual dispensing machine with glue AOI, 360° rotation and tilting & rotation functions, and has reached the industry-leading level in terms of performance, ease of use and reliability, etc.     Features and Advantages The servo motor and the grinding screw module are used to ensure high precision, high speed, high efficiency and high consistency of the system during operation. The repetitive positioning accuracy of the platform can be up to 0.01mm; and in combination with independent core pneumatic controller or jetting valve, high-precision and stable discharge and precise trajectory control of the fluid can be achieved. The stable glue line width or glue dot diameter of 0.2mm can be achieved by the non-contact method. Intelligent modules such as intelligent visual recognition, laser altimetry, automatic needle correction, online UV exposure and liquid level detection are available for selection. The unique dispensing process module is compatible with blowing and suction method for automatic valve cleaning, effectively preventing glue hanging.   Application Fields TWS Wireless Headset Receiver Linear Motor Speaker Flat Motor LCM Technical Specifications   Structure Frame structure Desktop   Cleanliness Level Cleanliness of working area Class 100 (Class 1000 workshop)       Product Application Fields Application fields MEMS Microphone/Barometer soldering ,CCM gluing Max. fixture weight 10kg (with Product ) Transmission mechanisms Servo motor&Screw module Repeatability X/Y: ±0.015mm       Motion System Positioning accuracy X/Y: ±0.025mm Max. movement speed X/Y:500mm/s Z:300mm/s Max. accelerated velocity X/Y:0.5g Z:0.3g Visual positioning method Mark/Product appearance featuresn Vision System Recognition accuracy ±1Pixel           Facilities Dimensions W*D*H 860×630×690mm machine weight 75KG Power supply 220V AC 50Hz Power 500W Inhale 0.5Mpa,150L/min Working ambient temperature 0-40℃ Working ambient Relative humidity 20-90% (no dewing)

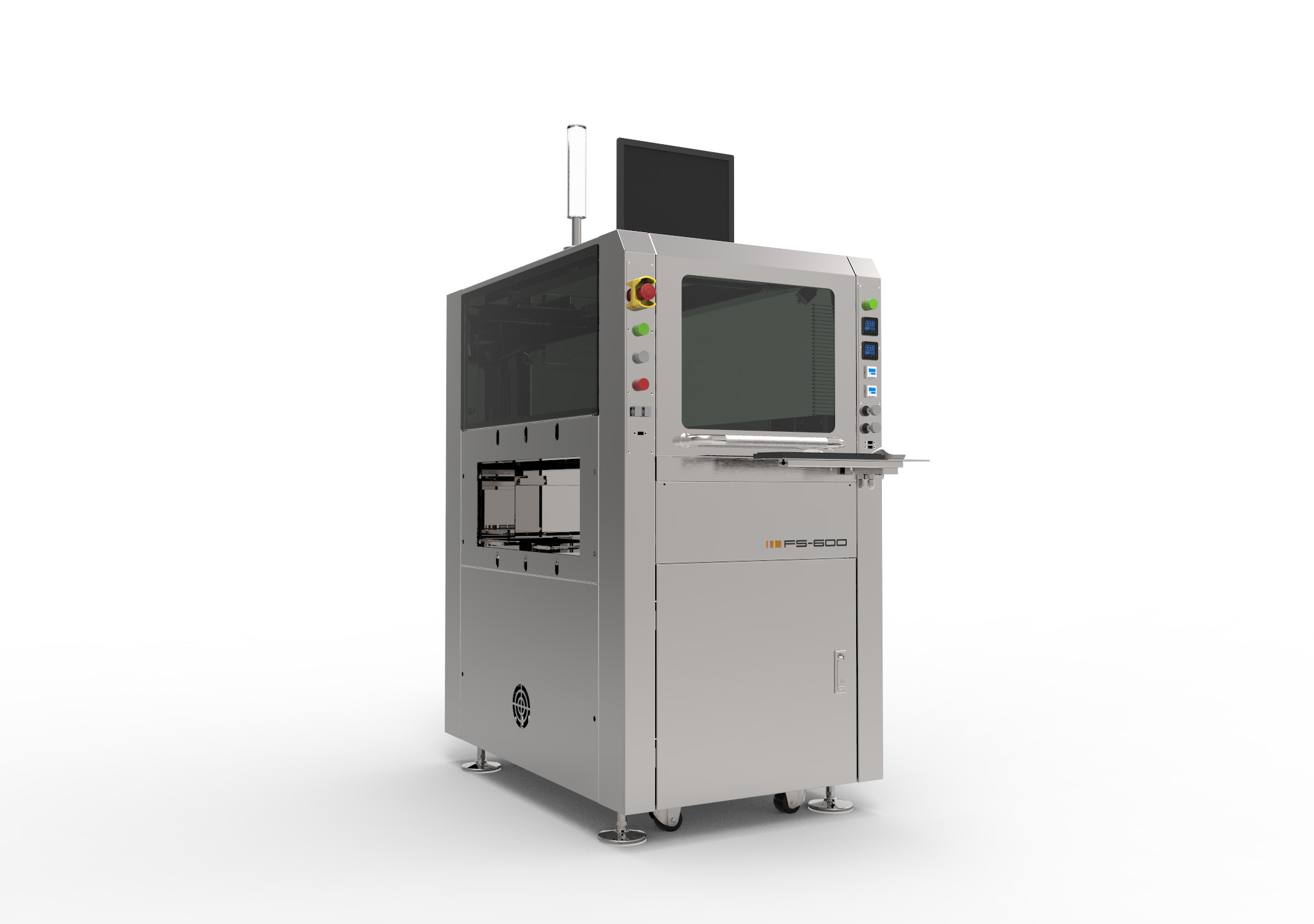

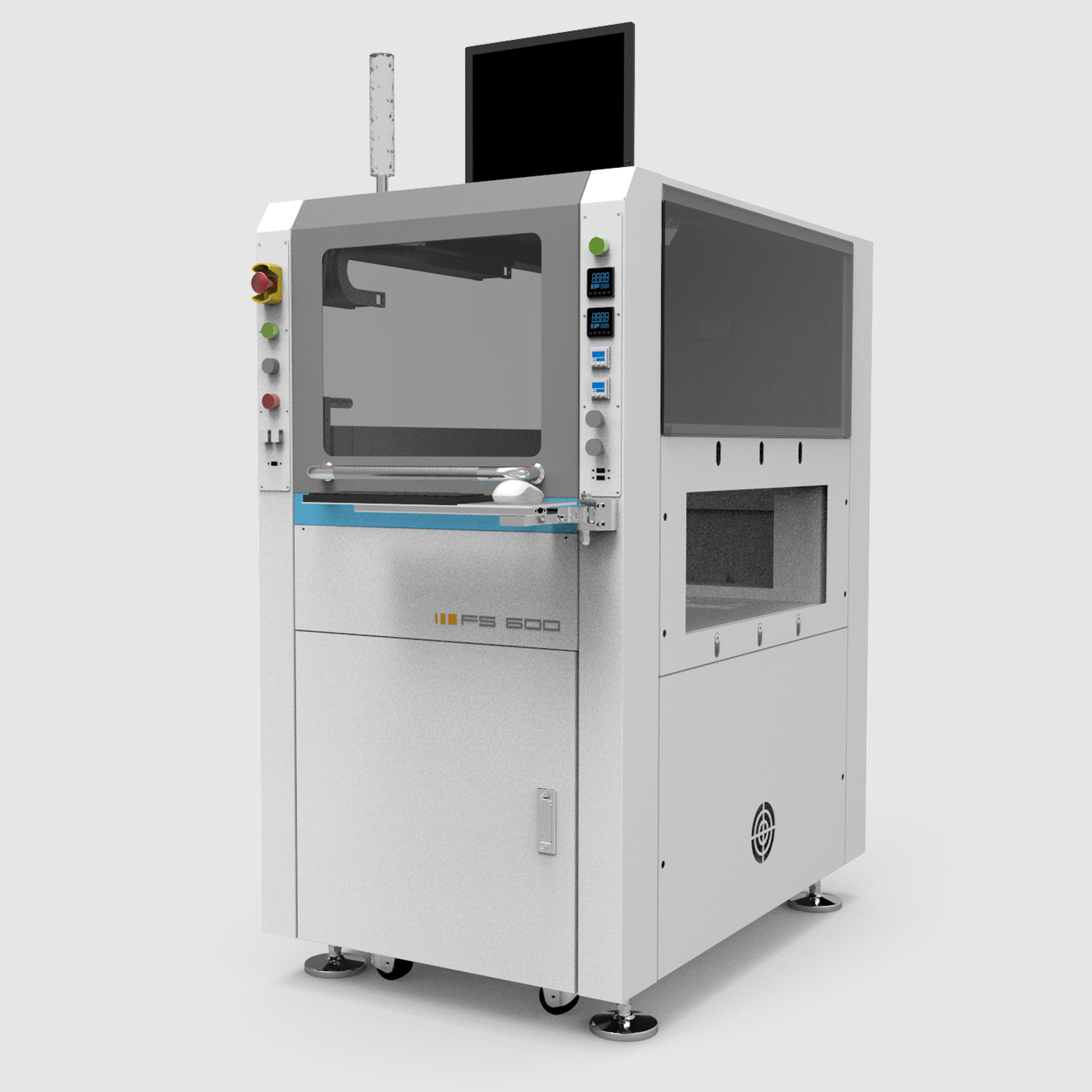

FS600A Online Visual Dispensing Machine   FS600A series fully-automatic dispensing equipment is a high-speed, high-precision and cost-effective online dispensing system which is developed based on the needs of industries such as SMT, FATP, VCM and MiniLED. The system integrates various core dispensing technologies and has rich configurations to meet the requirements of high-precision encapsulation, filling, bonding, assembly and other dispensing processes under complex working conditions.    Features and Advantages   Intelligent Fool-Proof Product status inspection before operation, and glue status inspection after operation. Rich Process Applicability According to different process requirements, configuration options such as on-line mode, double track, double valve, tilting, bottom heating, weighing and loading & unloading are provided. High Convenience The universal dispensing platform is suitable for a variety of dispensing process requirements to achieve quick model changeover.   Production Information Management Real-time production status information uploading and MES system docking.   High Speed and High Stability   Grating ruler positioning, linear motor drive, and Class A anti-vibration mineral casting platform.  Special Process Modules Tilting & Rotation Module Suitable for side dispensing process 360° Rotation Module Suitable for 360° obstacle-avoidance dispensing process Work Transfer Module Positioning / transfer function Optional single-track / double-track modes Typical Applications Underfill Dam&Fill Lens Gluing Dust-Catching Gluing Solder Paste Dispensing SMD Encapsulation PUR Adhesive Dispensing for Middle Bezel FPC Component Reinforcement FPC Component Reinforcement Metal dome gluing  Optional Configurations Double-Valve Synchronization Double-Valve Asynchronization Waiting Area and Dispensing Area Bottom Heating Double-Track Parallel Operation Weighing System Laser Altimetry Low Level Detection and Alarm Automatic Loading & Unloading Code Scanning Identification Vacuum Adsorption Platform Dimensions Optional Configurations Standard Optional   Cleaning Module   Low liquid level detection and alarm   Audible and Visual Alarm System   Weighing module   Vision Module   Laser calibration module   Air Pressure Regulation Module   Dustproof module   Piezoelectric Valve   Special cleaning module   Standard Operation Software   Dispensing Module ( Screw valve /Precision Dispensing Controllers,etc )   X/Y/Z Axis Reference Point Calibration Module   Double valve (Synchronous dispensing /Asynchronous dispensing )   IPC Industrial Control Computer   Tilt and Rotate Module   Nozzle Heating Device   360 °Rotation Module   Single Track   Automatic loading/unloading     -   Bar code &QR code recognition     -   Track conveyor module (Double track /Double track parallel)   -   Lifting module (Blade Lifting /Platform Lifting )   -   Vacuum adsorption module

VS300 Desktop Visual Dispensing Machine   The VS series is a high-precision visual dispensing machine with glue AOI, 360° rotation and tilting & rotation functions, and has reached the industry-leading level in terms of performance, ease of use and reliability, etc.     Features and Advantages The servo motor and the grinding screw module are used to ensure high precision, high speed, high efficiency and high consistency of the system during operation. The repetitive positioning accuracy of the platform can be up to 0.01mm; and in combination with independent core pneumatic controller or jetting valve, high-precision and stable discharge and precise trajectory control of the fluid can be achieved. The stable glue line width or glue dot diameter of 0.2mm can be achieved by the non-contact method. Intelligent modules such as intelligent visual recognition, laser altimetry, automatic needle correction, online UV exposure and liquid level detection are available for selection. The unique dispensing process module is compatible with blowing and suction method for automatic valve cleaning, effectively preventing glue hanging.   Application Fields TWS Wireless Headset Receiver Linear Motor Speaker Flat Motor LCM Technical Specifications   Structure Frame structure Desktop   Cleanliness Level Cleanliness of working area Class 100 (Class 1000 workshop)       Product Application Fields Application fields MEMS Microphone/Barometer soldering ,CCM gluing Max. fixture weight 10kg (with Product ) Transmission mechanisms Servo motor&Screw module Repeatability X/Y: ±0.015mm       Motion System Positioning accuracy X/Y: ±0.025mm Max. movement speed X/Y:500mm/s Z:300mm/s Max. accelerated velocity X/Y:0.5g Z:0.3g Visual positioning method Mark/Product appearance featuresn Vision System Recognition accuracy ±1Pixel           Facilities Dimensions W*D*H 860×630×690mm machine weight 75KG Power supply 220V AC 50Hz Power 500W Inhale 0.5Mpa,150L/min Working ambient temperature 0-40℃ Working ambient Relative humidity 20-90% (no dewing)

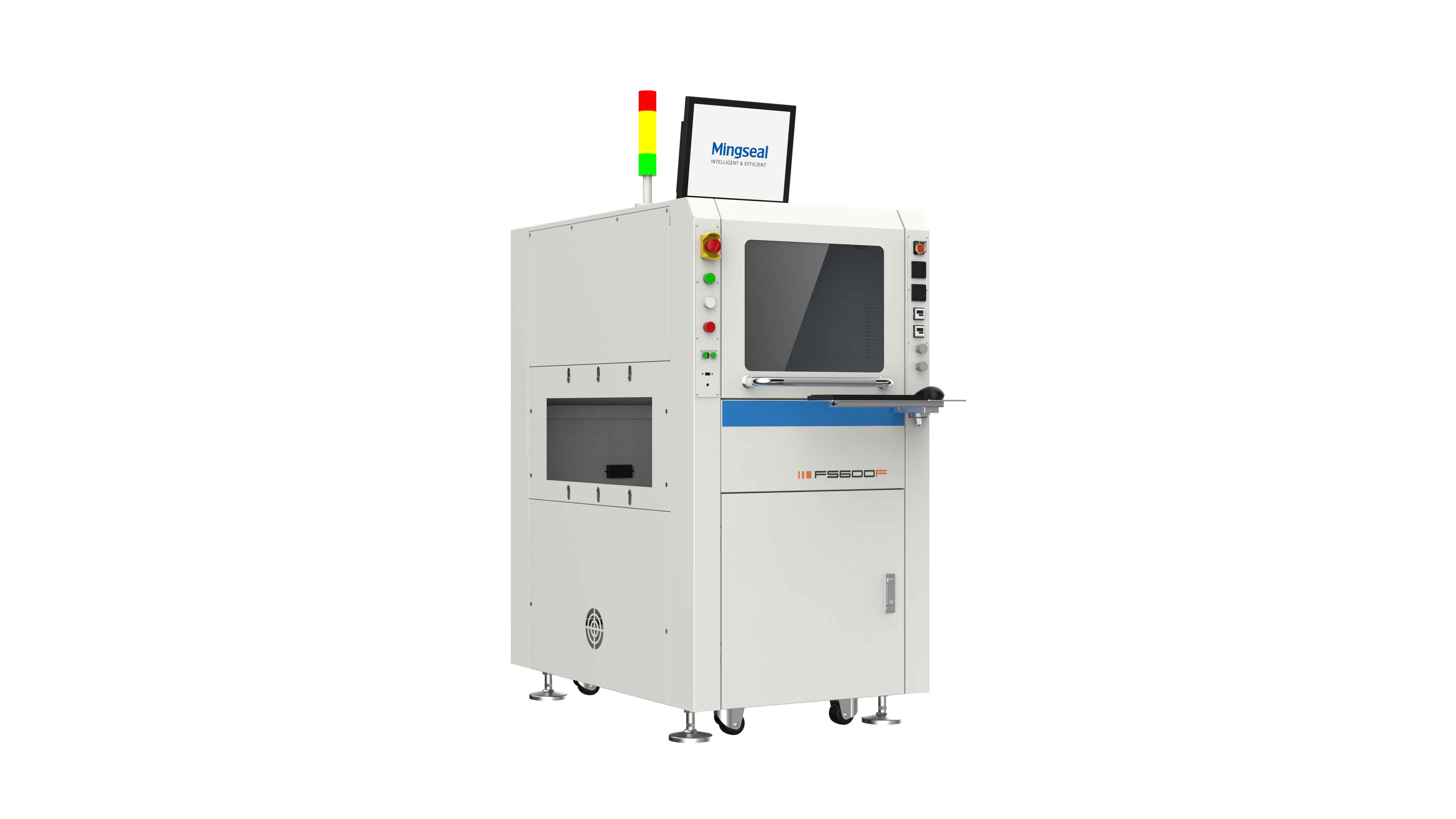

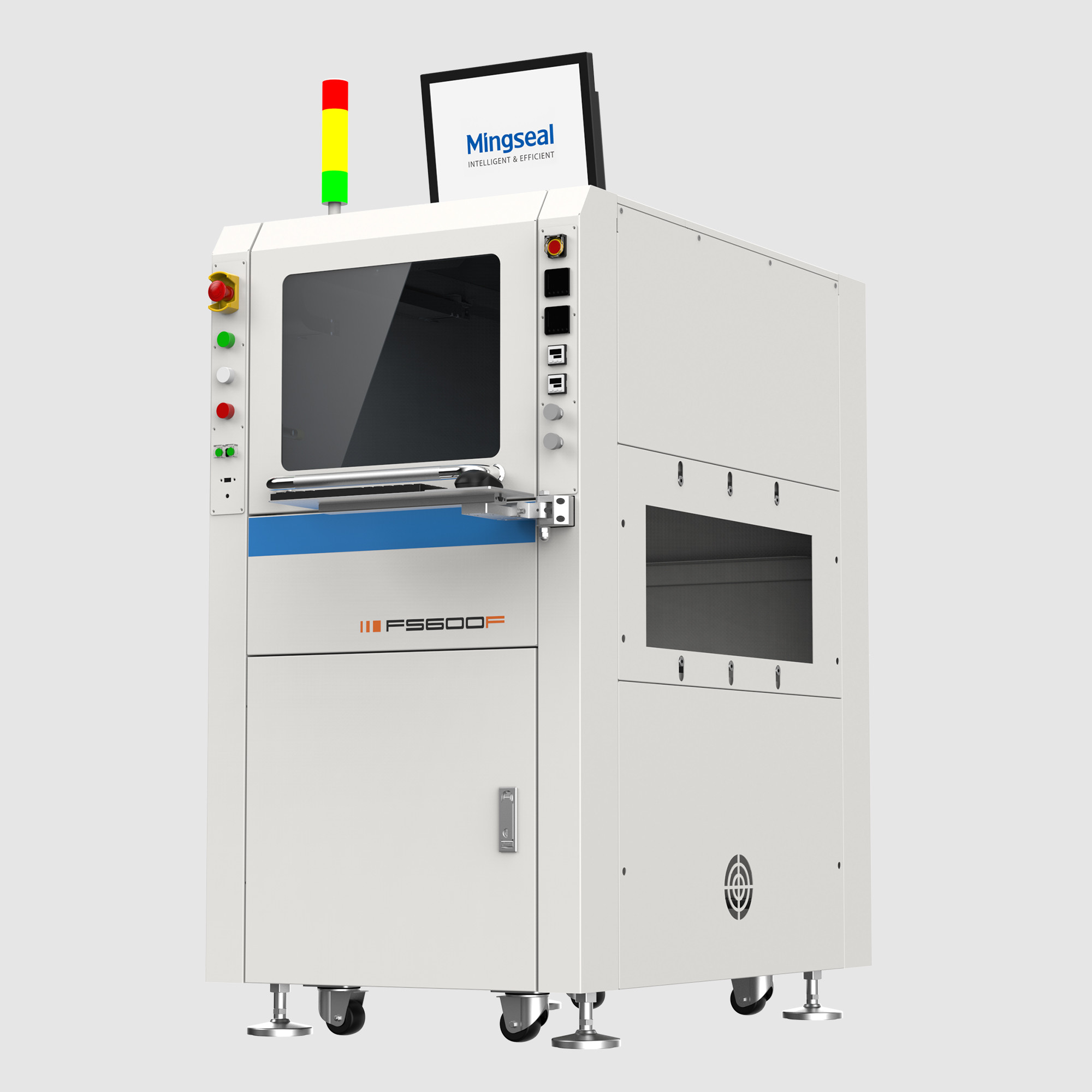

FS600F Online Visual Dispensing Machine   FS600 series fully-automatic dispensing equipment is a high-speed, high-precision and cost-effective online dispensing system which is developed based on the needs of industries such as SMT, FATP, VCM and MiniLED. The system integrates various core dispensing technologies and has rich configurations to meet the requirements of high-precision encapsulation, filling, bonding, assembly and other dispensing processes under complex working conditions.    Features and Advantages   Intelligent Fool-Proof Product status inspection before operation, and glue status inspection after operation. Rich Process Applicability According to different process requirements, configuration options such as on-line mode, double track, double valve, tilting, bottom heating, weighing and loading & unloading are provided. High Convenience The universal dispensing platform is suitable for a variety of dispensing process requirements to achieve quick model changeover.   Production Information Management Real-time production status information uploading and MES system docking.   High Speed and High Stability   Grating ruler positioning, linear motor drive, and Class A anti-vibration mineral casting platform.  Special Process Modules Tilting & Rotation Module Suitable for side dispensing process 360° Rotation Module Suitable for 360° obstacle-avoidance dispensing process Work Transfer Module Positioning / transfer function Optional single-track / double-track modes Typical Applications Underfill Dam&Fill Lens Gluing Dust-Catching Gluing Solder Paste Dispensing SMD Encapsulation PUR Adhesive Dispensing for Middle Bezel FPC Component Reinforcement FPC Component Reinforcement Metal dome gluing  Optional Configurations Double-Valve Synchronization Double-Valve Asynchronization Waiting Area and Dispensing Area Bottom Heating Double-Track Parallel Operation Weighing System Laser Altimetry Low Level Detection and Alarm Automatic Loading & Unloading Code Scanning Identification Vacuum Adsorption Platform Dimensions Optional Configurations Standard Optional   Cleaning Module   Low liquid level detection and alarm   Audible and Visual Alarm System   Weighing module   Vision Module   Laser calibration module   Air Pressure Regulation Module   Dustproof module   Piezoelectric Valve   Special cleaning module   Standard Operation Software   Dispensing Module ( Screw valve /Precision Dispensing Controllers,etc )   X/Y/Z Axis Reference Point Calibration Module   Double valve (Synchronous dispensing /Asynchronous dispensing )   IPC Industrial Control Computer   Tilt and Rotate Module   Nozzle Heating Device   360 °Rotation Module   Single Track   Automatic loading/unloading     -   Bar code &QR code recognition     -   Track conveyor module (Double track /Double track parallel)   -   Lifting module (Blade Lifting /Platform Lifting )   -   Vacuum adsorption module
